Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4571	BIRTH	Clutch Pedal Pad	Weight [g] 20 Fitting Position Front Axle
	4878	BIRTH	Clutch Pedal Pad	Weight [g] 40 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8498	BIRTH	Cap, radiator	Height [mm] 32 Width [mm] 52 Weight [g] 45 Pressure [bar] 1,4

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8471	BIRTH	Coolant Flange	Weight [g] 375 Fitting Position Front Axle Colour Black Material Plastic

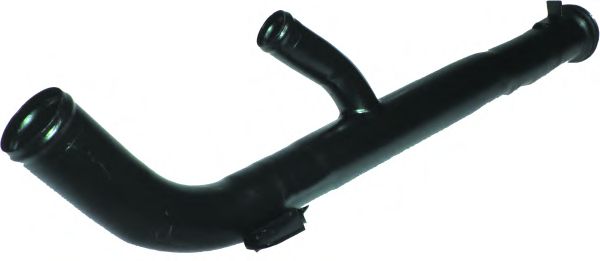

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	50605	BIRTH	Coolant Tube	Weight [g] 410
	8523	BIRTH	Coolant Tube	Inner Diameter [mm] 18

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8414	BIRTH	Water Tank, radiator	Weight [g] 288
	8530	BIRTH	Water Tank, radiator	Weight [g] 290 Fitting Position Front

Cap, oil filler

Images	Code parts	Brand of parts	Name of parts	Information
	8538	BIRTH	Cap, oil filler	Weight [g] 32

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7445	BIRTH	Rubber Buffer, silencer	Height [mm] 67,5 Weight [g] 83 Inner Diameter [mm] 14 Material Elastomer

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7474	BIRTH	Bellow, driveshaft	Height [mm] 104 Weight [g] 100 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 65
	7623	BIRTH	Bellow, driveshaft	Height [mm] 105 Weight [g] 54 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 24 Diameter 2 [mm] 81 Material Thermoplast

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3190	BIRTH	Tripod Hub, Drive shaft	Height [mm] 24 Weight [g] 290 Fitting Position Front Axle Diameter 1 [mm] 29,93 Diameter 2 [mm] 12 Inner Diameter [mm] 23,5 Number of Teeth 22
	3452	BIRTH	Tripod Hub, Drive shaft	Height [mm] 24 Weight [g] 300 Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 12 Inner Diameter [mm] 22,5 Number of Teeth 29
	3462	BIRTH	Tripod Hub, Drive shaft	Height [mm] 24 Weight [g] 300 Fitting Position Front Axle Diameter 1 [mm] 29,95 Diameter 2 [mm] 12 Inner Diameter [mm] 23,38 Number of Teeth 30

Oil Drain Plug, oil pan

Images	Code parts	Brand of parts	Name of parts	Information
	4363	BIRTH	Oil Drain Plug, oil pan	Height [mm] 22,5 Weight [g] 35 Outer Thread 1 [mm] M 16x1,5

Repair Kit, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	4561	BIRTH	Repair Kit, gear lever	Weight [g] 26 Fitting Position Front Axle
	6283	BIRTH	Repair Kit, gear lever	Length [mm] 165 Weight [g] 285
	6333	BIRTH	Repair Kit, gear lever	Length [mm] 106 Weight [g] 70

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7409	BIRTH	Bellow, steering	Height [mm] 168 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 9 Diameter 2 [mm] 39

Bush, steering shaft

Images	Code parts	Brand of parts	Name of parts	Information
	4143	BIRTH	Bush, steering shaft	Weight [g] 8 Fitting Position Front Axle

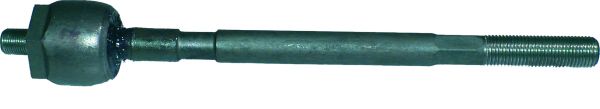

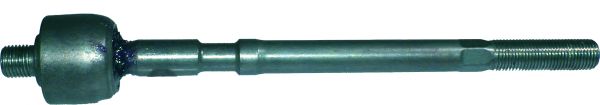

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0003	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 303 Length [mm] 320 Weight [g] 550 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX0025	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 241 Length [mm] 257 Weight [g] 490 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX0026	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 237 Length [mm] 255 Weight [g] 490 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX3209	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 242 Length [mm] 259 Weight [g] 500 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX7010	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 297 Length [mm] 311 Weight [g] 560 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX7011	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 299 Length [mm] 316 Weight [g] 585 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0015	BIRTH	Tie Rod End	Length 2 [mm] 90 Weight [g] 300 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12,2
	RD1300	BIRTH	Tie Rod End	Length 2 [mm] 159 Weight [g] 460 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 11,9
	RS0015	BIRTH	Tie Rod End	Length 2 [mm] 90 Weight [g] 300 Inner Thread 1 [mm] M 10x1,25 Outer Thread 2 [mm] M 14x1,5 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,2

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	51884	BIRTH	Rubber Buffer, suspension	Height [mm] 230 Weight [g] 245 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	5622	BIRTH	Rubber Buffer, suspension	Height [mm] 196 Weight [g] 170 Fitting Position Front Axle Diameter 1 [mm] 19 Diameter 2 [mm] 54

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6267	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 9 Width [mm] 56 Weight [g] 64 Fitting Position Front Axle Inner Diameter [mm] 16,5

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0928	BIRTH	Ball Joint	Weight [g] 530 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16

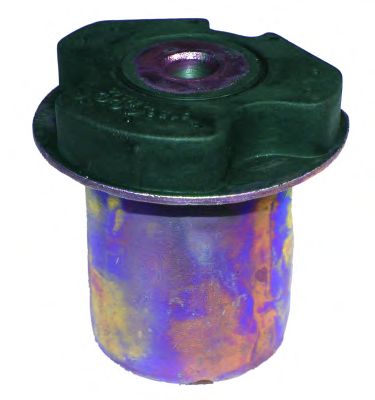

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2260	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 46 Width [mm] 45,4 Weight [g] 155 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2422	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 28 Width [mm] 77,2 Weight [g] 220 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 43

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	2445	BIRTH	Mounting, axle beam	Height [mm] 73 Width [mm] 44,2 Weight [g] 350 Fitting Position Rear Axle Inner Diameter [mm] 10,5

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4220	BIRTH	Nut, stub axle	Height [mm] 17,5 Width [mm] 30 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front Fitting Position Rear

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	5770	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length [mm] 74 Weight [g] 105 Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4587	BIRTH	Stabiliser Mounting	Height [mm] 47,2 Width [mm] 35,5 Length [mm] 42,2 Weight [g] 55 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 22

Suspension Kit

Images	Code parts	Brand of parts	Name of parts	Information
	6370	BIRTH	Suspension Kit	Weight [g] 310 Fitting Position Rear Axle

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50146	BIRTH	Top Strut Mounting	Height [mm] 43,5 Width [mm] 104 Weight [g] 320 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 29

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1442	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2130 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel
	BR1443	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2130 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel
