Cover, timing belt

Images	Code parts	Brand of parts	Name of parts	Information
	8262/C	BIRTH	Cover, timing belt	Weight [g] 230 Colour Black

Sensor, brake pad wear

Images	Code parts	Brand of parts	Name of parts	Information
	50820	BIRTH	Sensor, brake pad wear	Length [mm] 280 Weight [g] 15 Fitting Position Front Fitting Position Front Axle

Cap, carburettor

Images	Code parts	Brand of parts	Name of parts	Information
	4763	BIRTH	Cap, carburettor	Weight [g] 27 Inner Diameter [mm] 50
	4844	BIRTH	Cap, carburettor	Weight [g] 55 Inner Diameter [mm] 51

Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4081	BIRTH	Clutch Pedal Pad	Weight [g] 22 Fitting Position Front Axle

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4850	BIRTH	Release Fork, clutch	Weight [g] 435 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8122	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 0,7
	8570	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8700	BIRTH	Coolant Flange	Weight [g] 140 Fitting Position Front Axle

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	50182	BIRTH	Coolant Tube	Weight [g] 340
	5758	BIRTH	Coolant Tube	Weight [g] 290 Number of Holes 2

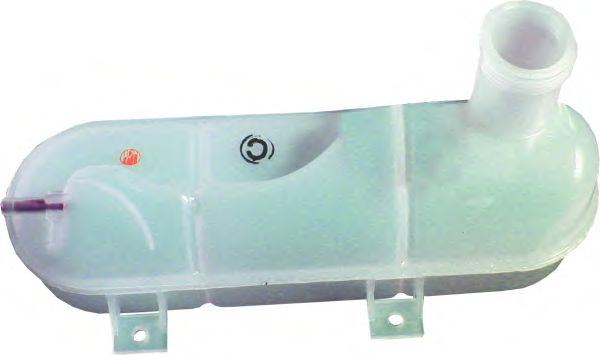

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8255	BIRTH	Water Tank, radiator	Weight [g] 300

Cap, oil filler

Images	Code parts	Brand of parts	Name of parts	Information
	8177	BIRTH	Cap, oil filler	Weight [g] 52 Material Elastomer

Bracket, engine mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5724	BIRTH	Bracket, engine mounting	Weight [g] 500 Fitting Position Rear
	5726	BIRTH	Bracket, engine mounting	Weight [g] 700 Fitting Position Rear

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5722	BIRTH	Engine Mounting	Weight [g] 450
	5723	BIRTH	Engine Mounting	Weight [g] 580 Fitting Position Rear
	5725	BIRTH	Engine Mounting	Weight [g] 1100 Fitting Position Rear
	5860	BIRTH	Engine Mounting	Weight [g] 1060
	5861	BIRTH	Engine Mounting	Weight [g] 1620 Fitting Position Front
	5896	BIRTH	Engine Mounting	Weight [g] 1650

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7183	BIRTH	Rubber Buffer, silencer	Weight [g] 35
	7184	BIRTH	Rubber Buffer, silencer	Weight [g] 70

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7186	BIRTH	Bellow, driveshaft	Height [mm] 97 Weight [g] 80 Fitting Position Front Axle Diameter 1 [mm] 20 Diameter 2 [mm] 65
	7344	BIRTH	Bellow, driveshaft	Height [mm] 93 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 19 Diameter 2 [mm] 58

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3101	BIRTH	Tripod Hub, Drive shaft	Weight [g] 305 Fitting Position Front Axle Number of Teeth 20
	3130	BIRTH	Tripod Hub, Drive shaft	Weight [g] 235 Fitting Position Front Axle Number of Teeth 19
	3383	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 21
	3384	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 20

Bush, selector-/shift rod

Images	Code parts	Brand of parts	Name of parts	Information
	4089	BIRTH	Bush, selector-/shift rod	Weight [g] 8 Fitting Position Front Axle

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7192	BIRTH	Bellow, steering	Height [mm] 167 Weight [g] 120 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 53

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0411	BIRTH	Tie Rod Axle Joint	Length [mm] 282 Weight [g] 550 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX0443	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 274 Length [mm] 291 Weight [g] 560 Outer Thread 1 [mm] M 12x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0441	BIRTH	Tie Rod End	Length 2 [mm] 140 Weight [g] 395 Outer Thread 1 [mm] M 10x1,25 Inner Thread 2 [mm] M 12x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	5490	BIRTH	Rubber Buffer, suspension	Height [mm] 200 Weight [g] 110 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 19 Diameter 2 [mm] 57
	5704	BIRTH	Rubber Buffer, suspension	Height [mm] 101 Weight [g] 150 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 30 Diameter 2 [mm] 21

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2005	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 33 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2116	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 58 Width [mm] 33 Weight [g] 265 Fitting Position Right Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 18,1
	2116/A	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 58 Width [mm] 33 Weight [g] 265 Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 18,1

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	2429	BIRTH	Mounting, axle beam	Height [mm] 28,7 Width [mm] 72,85 Weight [g] 135 Fitting Position Rear Axle Inner Diameter [mm] 16

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4481	BIRTH	Stabiliser Mounting	Weight [g] 203 Fitting Position inner Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 19
	4482	BIRTH	Stabiliser Mounting	Height [mm] 47 Width [mm] 48 Length [mm] 36 Weight [g] 80 Fitting Position inner Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 21
	4483	BIRTH	Stabiliser Mounting	Height [mm] 47 Width [mm] 48 Length [mm] 36 Weight [g] 203 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 22
	4484	BIRTH	Stabiliser Mounting	Height [mm] 34 Width [mm] 34,5 Length 2 [mm] 60 Length [mm] 85,5 Weight [g] 115 Fitting Position Front Axle Inner Diameter [mm] 10

Suspension Kit

Images	Code parts	Brand of parts	Name of parts	Information
	50161	BIRTH	Suspension Kit	Weight [g] 830 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle
	50834	BIRTH	Suspension Kit	Weight [g] 830 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5863	BIRTH	Top Strut Mounting	Height [mm] 49 Width [mm] 114,2 Length 2 [mm] 149,2 Length [mm] 184,6 Weight [g] 745 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1248	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3470 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15 Material Cast Iron
	BR1249	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3470 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15 Material Cast Iron
	BR1627	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 6500 Fitting Position Right Fitting Position Rear Fitting Position Rear Axle Material Cast Iron
	BR1628	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 6500 Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Material Cast Iron
	BR1629	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 6400 Fitting Position Right Fitting Position Rear Fitting Position Rear Axle Material Cast Iron
	BR1630	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 6400 Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Material Cast Iron

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3155	BIRTH	Wheel Hub	Height [mm] 63 Weight [g] 1115 Fitting Position Front Axle for wheel bearing diameter [mm] 35 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
	3157	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1300 Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3310	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1400 Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 116,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 44 Number of Holes 4
	3400	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1490 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3431	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1500 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
