Bearing, drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	6145	BIRTH	Bearing, drive shaft	Height [mm] 28 Width [mm] 47,5 Weight [g] 100 Inner Diameter [mm] 22,8

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8470	BIRTH	Coolant Flange	Weight [g] 380 Fitting Position Front Axle Colour Black

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8790	BIRTH	Water Tank, radiator	Weight [g] 515

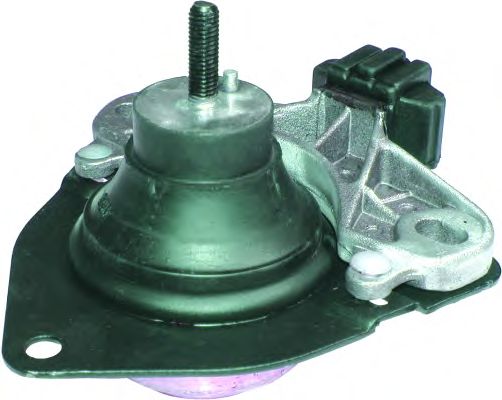

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50708	BIRTH	Engine Mounting	Weight [g] 750 Fitting Position Rear
	50753	BIRTH	Engine Mounting	Height [mm] 129 Length 2 [mm] 140 Weight [g] 1212 Fitting Position Right
	5946	BIRTH	Engine Mounting	Weight [g] 1120 Fitting Position Right Fitting Position Front

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7302	BIRTH	Rubber Buffer, silencer	Weight [g] 45

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7124	BIRTH	Bellow, driveshaft	Height [mm] 80 Weight [g] 290 Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 85
	7276	BIRTH	Bellow, driveshaft	Height [mm] 130 Weight [g] 71 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 85 Material Thermoplast
	7276/A	BIRTH	Bellow, driveshaft	Height [mm] 130 Weight [g] 101 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 85 Material Elastomer
	7327	BIRTH	Bellow, driveshaft	Height [mm] 145 Weight [g] 86 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 83 Material Thermoplast
	7332	BIRTH	Bellow, driveshaft	Height [mm] 88 Weight [g] 180 Fitting Position Front Axle Diameter 1 [mm] 28 Diameter 2 [mm] 74
	7474	BIRTH	Bellow, driveshaft	Height [mm] 104 Weight [g] 100 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 65
	7742	BIRTH	Bellow, driveshaft	Height [mm] 116 Weight [g] 170 Fitting Position Right Fitting Position Left Diameter 1 [mm] 24 Diameter 2 [mm] 89,5 Material Elastomer

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7279	BIRTH	Bellow, steering	Height [mm] 155 Weight [g] 100 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 37

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD3015	BIRTH	Tie Rod End	Length 2 [mm] 176 Length [mm] 196 Weight [g] 600 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12
	RS3015	BIRTH	Tie Rod End	Length 2 [mm] 176 Length [mm] 196 Weight [g] 600 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6260	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 20 Width [mm] 100 Weight [g] 150 Fitting Position Front Axle Inner Diameter [mm] 65

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX3016	BIRTH	Ball Joint	Weight [g] 310 Outer Thread 2 [mm] M 12x1,25 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 14,3

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2196	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 55 Weight [g] 300 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 18,3
	2197	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 58 Weight [g] 300 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4220	BIRTH	Nut, stub axle	Height [mm] 17,5 Width [mm] 30 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front Fitting Position Rear

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX1214	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length [mm] 390 Weight [g] 300 Fitting Position Front Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4877	BIRTH	Stabiliser Mounting	Weight [g] 40 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 19,5

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5692	BIRTH	Top Strut Mounting	Height [mm] 59,5 Width [mm] 184 Weight [g] 1600 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 14,5
	5693	BIRTH	Top Strut Mounting	Weight [g] 1600 Fitting Position Left Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1344	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 4800 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 14,5 Material Steel
	BR1345	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 4800 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 14,5 Material Steel
