Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4081	BIRTH	Clutch Pedal Pad	Weight [g] 22 Fitting Position Front Axle

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4850	BIRTH	Release Fork, clutch	Weight [g] 435 Fitting Position Front Axle
	4990	BIRTH	Release Fork, clutch	Height [mm] 58,6 Width [mm] 28 Weight [g] 80 Inner Diameter [mm] 25

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8122	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 0,7
	8194	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 1
	8568	BIRTH	Cap, radiator	Weight [g] 45 Pressure [bar] 1,4
	8570	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1

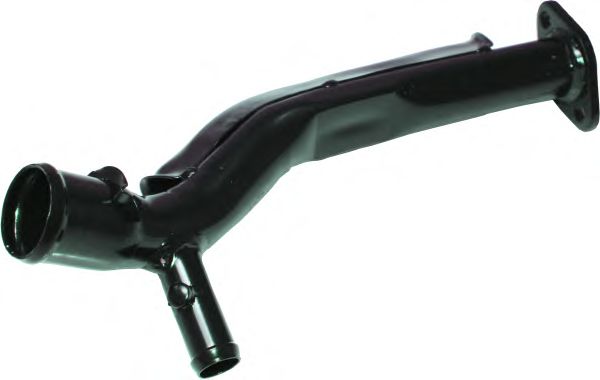

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	50064	BIRTH	Coolant Tube	Weight [g] 550

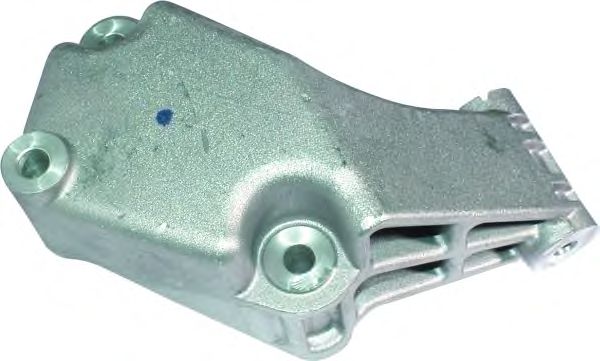

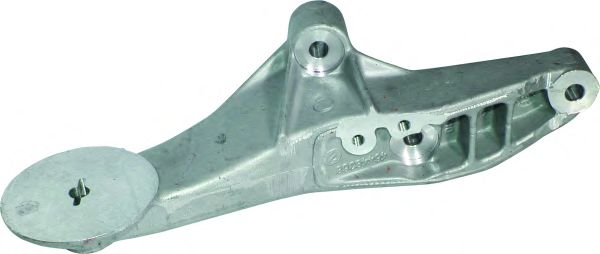

Bracket, engine mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50047	BIRTH	Bracket, engine mounting	Weight [g] 1235
	5738	BIRTH	Bracket, engine mounting	Weight [g] 1620

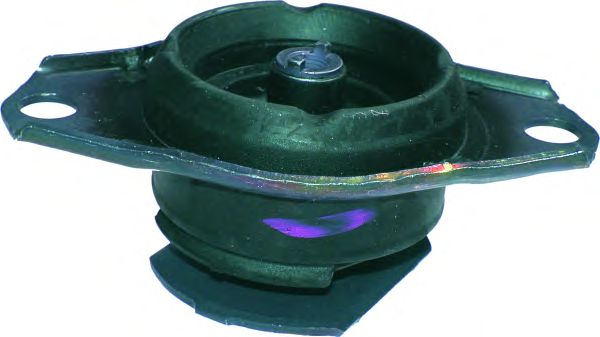

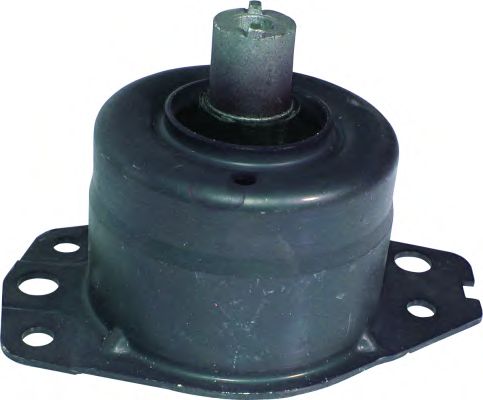

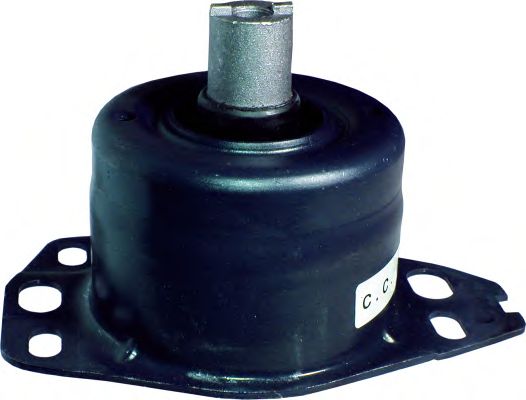

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4904	BIRTH	Engine Mounting	Weight [g] 232 Fitting Position Front Axle
	50060	BIRTH	Engine Mounting	Height [mm] 68,5 Width [mm] 102,5 Length 2 [mm] 142,5 Weight [g] 810 Inner Thread 2 [mm] M 12X1,25
	5720	BIRTH	Engine Mounting	Weight [g] 950 Fitting Position Front
	5737	BIRTH	Engine Mounting	Weight [g] 800
	5739	BIRTH	Engine Mounting	Weight [g] 990

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7230	BIRTH	Rubber Buffer, silencer	Weight [g] 45
	7232	BIRTH	Rubber Buffer, silencer	Height [mm] 60 Width [mm] 40 Weight [g] 65

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7121	BIRTH	Bellow, driveshaft	Height [mm] 82 Weight [g] 115 Fitting Position Right Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 73
	7121/C	BIRTH	Bellow, driveshaft	Height [mm] 82 Weight [g] 215 Fitting Position Right Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 73
	7122	BIRTH	Bellow, driveshaft	Height [mm] 82 Weight [g] 100 Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 80
	7122/C	BIRTH	Bellow, driveshaft	Height [mm] 82 Weight [g] 195 Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 80
	7154	BIRTH	Bellow, driveshaft	Height [mm] 87 Weight [g] 55 Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 78 Material Thermoplast
	7154/A	BIRTH	Bellow, driveshaft	Height [mm] 87 Weight [g] 60 Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 78 Material Elastomer

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3101	BIRTH	Tripod Hub, Drive shaft	Weight [g] 305 Fitting Position Front Axle Number of Teeth 20
	3295	BIRTH	Tripod Hub, Drive shaft	Weight [g] 290 Fitting Position Front Axle Number of Teeth 22
	3384	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 20

Funnel, oil dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8942	BIRTH	Funnel, oil dipstick	Weight [g] 150

Oil Dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8210	BIRTH	Oil Dipstick	Weight [g] 43 Fitting Position Front Axle

Bush, selector-/shift rod

Images	Code parts	Brand of parts	Name of parts	Information
	4089	BIRTH	Bush, selector-/shift rod	Weight [g] 8 Fitting Position Front Axle

Repair Kit, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	4969	BIRTH	Repair Kit, gear lever	Weight [g] 180
	6407	BIRTH	Repair Kit, gear lever	Weight [g] 110

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7358	BIRTH	Bellow, steering	Height [mm] 214 Weight [g] 50 Fitting Position Front Axle Diameter 1 [mm] 11 Diameter 2 [mm] 55 Material Thermoplast
	7359	BIRTH	Bellow, steering	Height [mm] 132 Weight [g] 105 Fitting Position Front Axle Diameter 1 [mm] 38 Diameter 2 [mm] 52
	7360	BIRTH	Bellow, steering	Height [mm] 98 Weight [g] 148 Fitting Position Front Axle Diameter 1 [mm] 66 Diameter 2 [mm] 53
	7696	BIRTH	Bellow, steering	Height [mm] 210 Weight [g] 47 Fitting Position Right Fitting Position Left Diameter 1 [mm] 10 Diameter 2 [mm] 55

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX2033	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 272,5 Length [mm] 290 Weight [g] 435 Outer Thread 1 [mm] M 12x1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0289	BIRTH	Tie Rod End	Length 2 [mm] 128 Length [mm] 146 Weight [g] 400 Inner Thread 1 [mm] M 12x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12
	RS0289	BIRTH	Tie Rod End	Length 2 [mm] 128 Length [mm] 146 Weight [g] 400 Inner Thread 1 [mm] M 12x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	6390	BIRTH	Bush, shock absorber	Fitting Position Right Fitting Position Left Fitting Position Front Axle

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	5746	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 127 Weight [g] 30 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 50 Diameter 2 [mm] 62

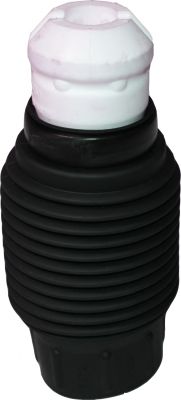

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	5160/A	BIRTH	Rubber Buffer, suspension	Height [mm] 200 Weight [g] 150 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 18 Diameter 2 [mm] 60
	5498	BIRTH	Rubber Buffer, suspension	Height [mm] 176 Weight [g] 72 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 64
	5515	BIRTH	Rubber Buffer, suspension	Height [mm] 70 Weight [g] 120 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 25 Diameter 2 [mm] 28
	5704	BIRTH	Rubber Buffer, suspension	Height [mm] 101 Weight [g] 150 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 30 Diameter 2 [mm] 21
	5803	BIRTH	Rubber Buffer, suspension	Height [mm] 94 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 26,5 Diameter 2 [mm] 21

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6259	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 46 Width [mm] 124 Weight [g] 320 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 77,3

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2226	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 41 Weight [g] 285 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 20,9
	2227	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 58,6 Weight [g] 465 Fitting Position Right Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 20,9
	2228	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 58,6 Weight [g] 465 Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 20,9

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	5777	BIRTH	Mounting, axle beam	Height [mm] 47 Width [mm] 66 Weight [g] 350 Fitting Position Front Fitting Position Rear Axle Inner Diameter [mm] 12
	5778	BIRTH	Mounting, axle beam	Height [mm] 73,5 Width [mm] 75,6 Weight [g] 192 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 15

Mounting, stabilizer coupling rod

Images	Code parts	Brand of parts	Name of parts	Information
	4359	BIRTH	Mounting, stabilizer coupling rod	Height [mm] 19 Width [mm] 31 Weight [g] 30 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 10 Material Steel Elastomer

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4500	BIRTH	Nut, stub axle	Height [mm] 29,5 Width [mm] 32 Weight [g] 60 Inner Thread 1 [mm] M 22x1,5 Fitting Position Front Flange Ø [mm] 36
	4501	BIRTH	Nut, stub axle	Height [mm] 23 Width [mm] 36 Weight [g] 89 Inner Thread 1 [mm] M 24X1,5 Fitting Position Front Flange Ø [mm] 40

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	5166/C	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Width [mm] 33 Length [mm] 117 Weight [g] 235 Outer Thread 2 [mm] M 10x1,25 Fitting Position Front Axle Inner Diameter [mm] 12

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4201	BIRTH	Stabiliser Mounting	Height [mm] 47 Width [mm] 59,5 Length [mm] 41 Weight [g] 80 Fitting Position Front Axle Inner Diameter [mm] 22
	4202	BIRTH	Stabiliser Mounting	Height [mm] 47 Width [mm] 59,5 Length [mm] 41 Weight [g] 80 Fitting Position Front Axle Inner Diameter [mm] 23 Colour Yellow

Suspension Kit

Images	Code parts	Brand of parts	Name of parts	Information
	50160	BIRTH	Suspension Kit	Weight [g] 890 Fitting Position Right Fitting Position Left Fitting Position Rear Axle
	50934	BIRTH	Suspension Kit	Weight [g] 890 Fitting Position Right Fitting Position Left Fitting Position Rear Axle

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5395	BIRTH	Top Strut Mounting	Height [mm] 53,5 Width [mm] 200 Weight [g] 1280 Fitting Position Left Fitting Position Front Axle
	5396	BIRTH	Top Strut Mounting	Height [mm] 53,5 Width [mm] 200 Weight [g] 1280 Fitting Position Right Fitting Position Front Axle
	5747	BIRTH	Top Strut Mounting	Height [mm] 51 Width [mm] 152,5 Length [mm] 210 Weight [g] 920 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12,2

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1156	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3100 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Cast Iron
	BR1157	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3100 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Cast Iron
	BR1281	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 7000 Fitting Position Right Fitting Position Rear Axle Material Cast Iron
	BR1282	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 7000 Fitting Position Left Fitting Position Rear Axle Material Cast Iron

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3146	BIRTH	Wheel Hub	Height [mm] 71,5 Weight [g] 1300 Fitting Position Right Fitting Position Left Fitting Position Front Axle for wheel bearing diameter [mm] 37 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 25 Number of Holes 4
	3155	BIRTH	Wheel Hub	Height [mm] 63 Weight [g] 1115 Fitting Position Front Axle for wheel bearing diameter [mm] 35 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
	3400	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1490 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3431	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1500 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
