Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4476	BIRTH	Clutch Pedal Pad	Weight [g] 30 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8195	BIRTH	Cap, radiator	Weight [g] 70 Pressure [bar] 1

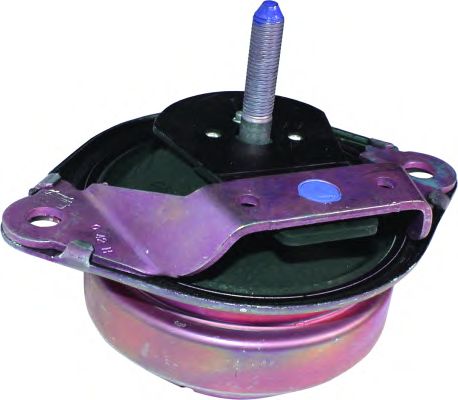

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50021	BIRTH	Engine Mounting	Weight [g] 1350 Fitting Position Right Fitting Position Front
	50085	BIRTH	Engine Mounting	Weight [g] 800 Fitting Position Rear

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7432	BIRTH	Rubber Buffer, silencer

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7324	BIRTH	Bellow, driveshaft	Height [mm] 107 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 86 Material Thermoplast
	7336	BIRTH	Bellow, driveshaft	Height [mm] 84 Weight [g] 120 Fitting Position Front Axle Diameter 1 [mm] 25 Diameter 2 [mm] 88

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7192	BIRTH	Bellow, steering	Height [mm] 167 Weight [g] 120 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 53

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX1013	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 277 Length [mm] 293 Weight [g] 555 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX2062	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 275 Length [mm] 295 Weight [g] 600 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14X1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD2029	BIRTH	Tie Rod End	Length 2 [mm] 142 Weight [g] 460 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,5
	TD1016	BIRTH	Tie Rod End	Weight [g] 178 Fitting Position Right Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 12
	TS1016	BIRTH	Tie Rod End	Weight [g] 250 Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 12

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50874	BIRTH	Rubber Buffer, suspension	Weight [g] 10 Fitting Position Right Fitting Position Left Fitting Position Rear Axle
	50883	BIRTH	Rubber Buffer, suspension	Height [mm] 92 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 29,5 Diameter 2 [mm] 33
	5514	BIRTH	Rubber Buffer, suspension	Height [mm] 80 Weight [g] 75 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 33,5

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6420	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 9,5 Width [mm] 110 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 73

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX1014	BIRTH	Ball Joint	Weight [g] 380 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2163	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 72 Width [mm] 54 Length 2 [mm] 114 Length [mm] 164 Weight [g] 455 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 19

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4220	BIRTH	Nut, stub axle	Height [mm] 17,5 Width [mm] 30 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front Fitting Position Rear
	4501	BIRTH	Nut, stub axle	Height [mm] 23 Width [mm] 36 Weight [g] 89 Inner Thread 1 [mm] M 24X1,5 Fitting Position Front Flange Ø [mm] 40

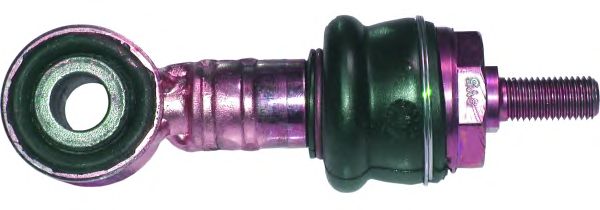

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	5847	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length [mm] 128 Weight [g] 335 Fitting Position Front Axle
	BX1321	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 240 Weight [g] 460 Fitting Position Right Fitting Position Left Fitting Position Upper Fitting Position Rear Axle Inner Diameter [mm] 12,6
	BX1426	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 102 Weight [g] 250 Outer Thread 2 [mm] M 10x1,5 Fitting Position Rear Fitting Position Rear Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4485	BIRTH	Stabiliser Mounting	Height [mm] 41 Width [mm] 45 Length [mm] 44 Weight [g] 63 Fitting Position inner Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 18

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50024	BIRTH	Top Strut Mounting	Weight [g] 1450 Fitting Position Rear Axle to Chassis No. 2087506
	5400	BIRTH	Top Strut Mounting	Weight [g] 700 Fitting Position Rear Axle from Chassis No. 053013

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1327	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3800 Outer Thread 2 [mm] M 12X1,25 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15 Material Sheet Steel
	BR1328	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3800 Outer Thread 2 [mm] M 12X1,25 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15 Material Sheet Steel
	BX1016	BIRTH	Track Control Arm	Steering arm type Control Arm Length [mm] 530 Weight [g] 950 Fitting Position Rear Axle Inner Diameter [mm] 12
