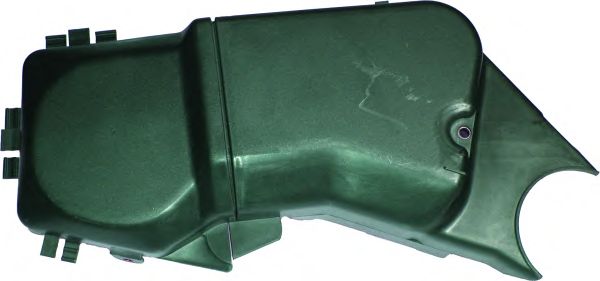

Cover, timing belt

Images	Code parts	Brand of parts	Name of parts	Information
	8285	BIRTH	Cover, timing belt	Weight [g] 141 Colour Black

Cap, carburettor

Images	Code parts	Brand of parts	Name of parts	Information
	4763	BIRTH	Cap, carburettor	Weight [g] 27 Inner Diameter [mm] 50

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4850	BIRTH	Release Fork, clutch	Weight [g] 435 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8122	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 0,7
	8194	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 1
	8570	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8700	BIRTH	Coolant Flange	Weight [g] 140 Fitting Position Front Axle

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	50733	BIRTH	Coolant Tube	Weight [g] 20 Diameter 1 [mm] 15,8 Diameter 2 [mm] 16,5 Material Aluminium
	5576	BIRTH	Coolant Tube	Weight [g] 270 Number of Holes 2
	5758	BIRTH	Coolant Tube	Weight [g] 290 Number of Holes 2

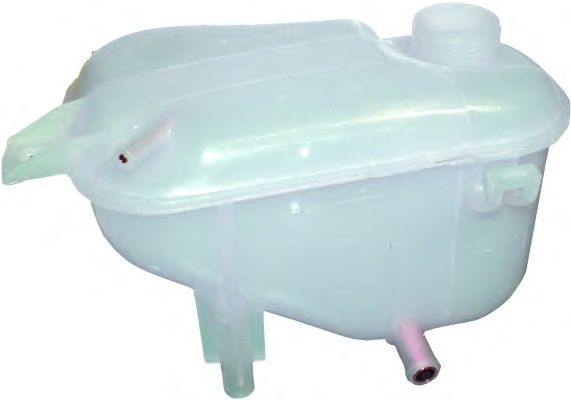

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8495	BIRTH	Water Tank, radiator	Weight [g] 650

Cap, oil filler

Images	Code parts	Brand of parts	Name of parts	Information
	8177	BIRTH	Cap, oil filler	Weight [g] 52 Material Elastomer

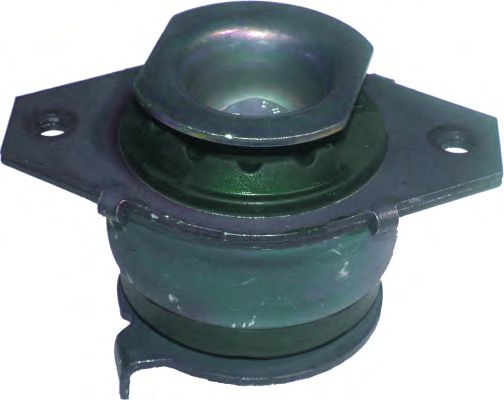

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50043	BIRTH	Engine Mounting	Weight [g] 420
	50044	BIRTH	Engine Mounting	Weight [g] 785 Fitting Position Front

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7129	BIRTH	Rubber Buffer, silencer	Weight [g] 70

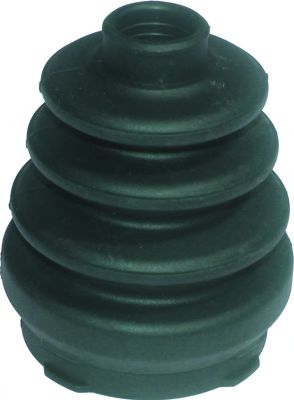

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7170	BIRTH	Bellow, driveshaft	Height [mm] 79 Weight [g] 72 Fitting Position Front Axle Diameter 1 [mm] 21 Diameter 2 [mm] 65
	7187	BIRTH	Bellow, driveshaft	Height [mm] 72 Weight [g] 75 Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 85
	7344	BIRTH	Bellow, driveshaft	Height [mm] 93 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 19 Diameter 2 [mm] 58

Drive Shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3293	BIRTH	Drive Shaft	Weight [g] 1250 Fitting Position Front Axle

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3130	BIRTH	Tripod Hub, Drive shaft	Weight [g] 235 Fitting Position Front Axle Number of Teeth 19

Oil Dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8205	BIRTH	Oil Dipstick	Weight [g] 55 Fitting Position Front Axle

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7157	BIRTH	Bellow, steering	Height [mm] 130 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 9 Diameter 2 [mm] 40

Bush, steering shaft

Images	Code parts	Brand of parts	Name of parts	Information
	4468	BIRTH	Bush, steering shaft	Weight [g] 5 Fitting Position Front Axle

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0179	BIRTH	Tie Rod Axle Joint	Length [mm] 286 Weight [g] 590 Outer Thread 1 [mm] M 12x1,5 Inner Thread 2 [mm] M 12x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0297	BIRTH	Tie Rod End	Length 2 [mm] 115 Weight [g] 410 Inner Thread 1 [mm] M 12x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 13

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	51121	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 102 Weight [g] 60 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 60 Inner Diameter [mm] 42

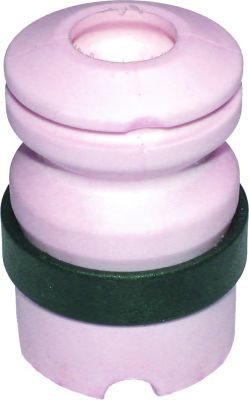

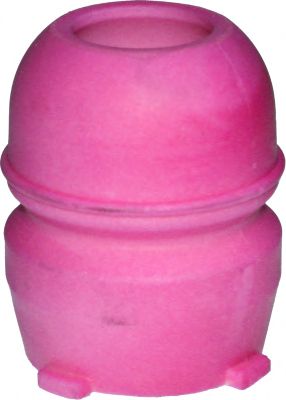

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50884	BIRTH	Rubber Buffer, suspension	Height [mm] 75 Weight [g] 115 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 31 Diameter 2 [mm] 14
	50887	BIRTH	Rubber Buffer, suspension	Height [mm] 86 Weight [g] 65 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 22,5 Diameter 2 [mm] 15
	5495	BIRTH	Rubber Buffer, suspension	Height [mm] 100 Weight [g] 120 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Diameter 1 [mm] 29,5 Diameter 2 [mm] 8,5

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2005	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 33 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2006	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 54 Width [mm] 59,3 Weight [g] 122 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 17
	50012	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 69 Width [mm] 45 Weight [g] 440 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 12

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4500	BIRTH	Nut, stub axle	Height [mm] 29,5 Width [mm] 32 Weight [g] 60 Inner Thread 1 [mm] M 22x1,5 Fitting Position Front Flange Ø [mm] 36

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4820	BIRTH	Stabiliser Mounting	Height [mm] 32 Width [mm] 28 Length 2 [mm] 66 Length [mm] 85 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 17
	4821	BIRTH	Stabiliser Mounting	Height [mm] 31 Width [mm] 31,5 Length [mm] 35 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 18

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5394	BIRTH	Top Strut Mounting	Weight [g] 705 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1174	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3000 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 12,2 Material Cast Iron
	BR1175	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3000 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 12,2 Material Cast Iron
	BR1718	BIRTH	Track Control Arm	Steering arm type Control Arm Fitting Position Right Fitting Position Rear Fitting Position Rear Axle Material Sheet Steel
	BR1719	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 6700 Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3123	BIRTH	Wheel Hub	Height [mm] 61 Weight [g] 1500 Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3155	BIRTH	Wheel Hub	Height [mm] 63 Weight [g] 1115 Fitting Position Front Axle for wheel bearing diameter [mm] 35 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
