Bearing, drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	6143	BIRTH	Bearing, drive shaft	Height [mm] 26 Width [mm] 47,5 Weight [g] 100 Inner Diameter [mm] 25,8
	6144	BIRTH	Bearing, drive shaft	Height [mm] 27 Width [mm] 47,5 Weight [g] 100 Inner Diameter [mm] 23,8

Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4571	BIRTH	Clutch Pedal Pad	Weight [g] 20 Fitting Position Front Axle

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4743	BIRTH	Release Fork, clutch	Weight [g] 290 Fitting Position Front Axle Material Plastic

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8296	BIRTH	Cap, radiator	Weight [g] 32 Pressure [bar] 1 Colour Black
	8440	BIRTH	Cap, radiator	Weight [g] 35 Pressure [bar] 1,2 Colour Pale blue

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8318	BIRTH	Coolant Flange	Weight [g] 95 Fitting Position Front Axle

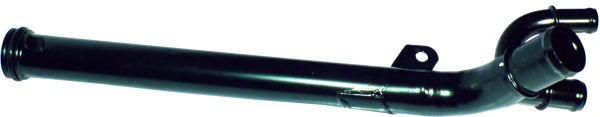

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	5580	BIRTH	Coolant Tube	Weight [g] 340 Number of Holes 4
	8234	BIRTH	Coolant Tube	Material Metal

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4520	BIRTH	Engine Mounting	Weight [g] 100 Fitting Position inner Fitting Position Front Axle
	4971	BIRTH	Engine Mounting	Weight [g] 53 Fitting Position inner Fitting Position Front Axle

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7136	BIRTH	Rubber Buffer, silencer	Width [mm] 47,2 Weight [g] 25 Inner Diameter [mm] 10

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7039	BIRTH	Bellow, driveshaft	Height [mm] 80 Weight [g] 180 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 85
	7040	BIRTH	Bellow, driveshaft	Height [mm] 80 Weight [g] 280 Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 85 Inner Diameter [mm] 25,8
	7040/C	BIRTH	Bellow, driveshaft	Height [mm] 80 Weight [g] 276 Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 85 Inner Diameter [mm] 23,8
	7273	BIRTH	Bellow, driveshaft	Height [mm] 140 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 33 Diameter 2 [mm] 70 Material Thermoplast
	7273/A	BIRTH	Bellow, driveshaft	Height [mm] 140 Weight [g] 133 Fitting Position Front Axle Diameter 1 [mm] 33 Diameter 2 [mm] 70 Material Elastomer
	7274	BIRTH	Bellow, driveshaft	Height [mm] 138 Weight [g] 58 Fitting Position Front Axle Diameter 1 [mm] 24 Diameter 2 [mm] 82 Material Thermoplast
	7274/A	BIRTH	Bellow, driveshaft	Height [mm] 138 Weight [g] 140 Fitting Position Front Axle Diameter 1 [mm] 24 Diameter 2 [mm] 82 Material Elastomer
	7742	BIRTH	Bellow, driveshaft	Height [mm] 116 Weight [g] 170 Fitting Position Right Fitting Position Left Diameter 1 [mm] 24 Diameter 2 [mm] 89,5 Material Elastomer

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3190	BIRTH	Tripod Hub, Drive shaft	Height [mm] 24 Weight [g] 290 Fitting Position Front Axle Diameter 1 [mm] 29,93 Diameter 2 [mm] 12 Inner Diameter [mm] 23,5 Number of Teeth 22

Oil Drain Plug, oil pan

Images	Code parts	Brand of parts	Name of parts	Information
	4363	BIRTH	Oil Drain Plug, oil pan	Height [mm] 22,5 Weight [g] 35 Outer Thread 1 [mm] M 16x1,5

Repair Kit, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	4561	BIRTH	Repair Kit, gear lever	Weight [g] 26 Fitting Position Front Axle
	4735	BIRTH	Repair Kit, gear lever	Weight [g] 24 Fitting Position Front Axle
	6333	BIRTH	Repair Kit, gear lever	Length [mm] 106 Weight [g] 70

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7074	BIRTH	Bellow, steering	Height [mm] 155 Weight [g] 85 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 27,5
	7139	BIRTH	Bellow, steering	Height [mm] 160 Weight [g] 100 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 40

Bush, steering shaft

Images	Code parts	Brand of parts	Name of parts	Information
	4143	BIRTH	Bush, steering shaft	Weight [g] 8 Fitting Position Front Axle

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0677	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 259 Length [mm] 275,5 Weight [g] 520 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	TD0675	BIRTH	Tie Rod End	Length 2 [mm] 110 Weight [g] 310 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 11,9
	TS0675	BIRTH	Tie Rod End	Length 2 [mm] 110 Weight [g] 310 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 11,9

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	50656	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 239 Weight [g] 65 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 18,5 Diameter 2 [mm] 51,5

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6266	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 21 Width [mm] 99,5 Weight [g] 200 Fitting Position Front Axle Inner Diameter [mm] 62,5

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2084	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 46 Width [mm] 45,4 Weight [g] 190 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	2451	BIRTH	Mounting, axle beam	Height [mm] 35 Width [mm] 28 Weight [g] 80 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 12

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4516	BIRTH	Stabiliser Mounting	Weight [g] 40 Fitting Position Front Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 18
	4519	BIRTH	Stabiliser Mounting	Height [mm] 46,5 Width [mm] 35,5 Length [mm] 42 Weight [g] 246 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 21

Suspension Kit

Images	Code parts	Brand of parts	Name of parts	Information
	6368	BIRTH	Suspension Kit	Weight [g] 325 Fitting Position Rear Axle

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5823	BIRTH	Top Strut Mounting	Weight [g] 1090 Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1152	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2150 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel
	BR1153	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2150 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel
