Pedal Pad, accelerator pedal

Images	Code parts	Brand of parts	Name of parts	Information
	4082	BIRTH	Pedal Pad, accelerator pedal	Weight [g] 21 Fitting Position Front Axle

Bearing, drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	6142	BIRTH	Bearing, drive shaft	Height [mm] 28 Width [mm] 47,5 Weight [g] 100 Inner Diameter [mm] 23

Cap, carburettor

Images	Code parts	Brand of parts	Name of parts	Information
	8532	BIRTH	Cap, carburettor	Weight [g] 60

Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4081	BIRTH	Clutch Pedal Pad	Weight [g] 22 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8122	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 0,7
	8194	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 1
	8570	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	5754	BIRTH	Coolant Tube	Weight [g] 3200 Number of Holes 3
	8225	BIRTH	Coolant Tube	Weight [g] 20

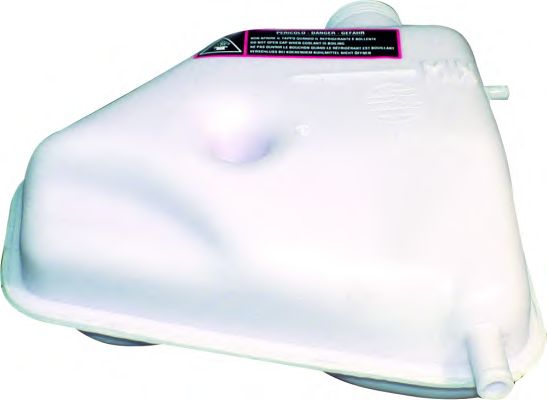

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8121	BIRTH	Water Tank, radiator	Weight [g] 660
	8135	BIRTH	Water Tank, radiator	Weight [g] 575
	8565	BIRTH	Water Tank, radiator	Weight [g] 395

Cap, oil filler

Images	Code parts	Brand of parts	Name of parts	Information
	8082	BIRTH	Cap, oil filler	Weight [g] 40

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4309	BIRTH	Engine Mounting	Height [mm] 50,3 Width [mm] 33,5 Length [mm] 42 Weight [g] 95 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 18
	50630	BIRTH	Engine Mounting	Weight [g] 1800 Fitting Position Front
	5337	BIRTH	Engine Mounting	Weight [g] 420 Fitting Position Rear
	5340	BIRTH	Engine Mounting	Weight [g] 3550 Fitting Position inner Fitting Position Rear
	5341	BIRTH	Engine Mounting	Weight [g] 845 Fitting Position Rear Fitting Position Upper
	5342	BIRTH	Engine Mounting	Weight [g] 885
	5510	BIRTH	Engine Mounting	Weight [g] 560 Fitting Position Rear

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7092	BIRTH	Rubber Buffer, silencer	Weight [g] 21
	7093	BIRTH	Rubber Buffer, silencer	Weight [g] 75
	7130	BIRTH	Rubber Buffer, silencer	Weight [g] 100
	8119	BIRTH	Rubber Buffer, silencer	Weight [g] 80

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7001	BIRTH	Bellow, driveshaft	Height [mm] 85 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 25 Diameter 2 [mm] 60
	7011	BIRTH	Bellow, driveshaft	Height [mm] 73 Weight [g] 120 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 64
	7023	BIRTH	Bellow, driveshaft	Height [mm] 80 Weight [g] 62 Fitting Position Front Axle Diameter 1 [mm] 20 Diameter 2 [mm] 68 Material Elastomer
	7118	BIRTH	Bellow, driveshaft	Height [mm] 77 Weight [g] 110 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 69
	7119	BIRTH	Bellow, driveshaft	Height [mm] 77 Weight [g] 110 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 79

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3101	BIRTH	Tripod Hub, Drive shaft	Weight [g] 305 Fitting Position Front Axle Number of Teeth 20
	3384	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 20

Control Valve, coolant

Images	Code parts	Brand of parts	Name of parts	Information
	8334	BIRTH	Control Valve, coolant	Weight [g] 62
	8335	BIRTH	Control Valve, coolant	Weight [g] 60

Repair Kit, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	4095	BIRTH	Repair Kit, gear lever	Weight [g] 700 Fitting Position Front Axle
	6417	BIRTH	Repair Kit, gear lever	Weight [g] 170
	6418	BIRTH	Repair Kit, gear lever	Weight [g] 180

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7057	BIRTH	Bellow, steering	Height [mm] 165 Weight [g] 78 Fitting Position Right Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 26
	7058	BIRTH	Bellow, steering	Height [mm] 125 Weight [g] 150 Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 42 Material Elastomer

Bush, steering shaft

Images	Code parts	Brand of parts	Name of parts	Information
	4139	BIRTH	Bush, steering shaft	Height [mm] 18 Width [mm] 28 Weight [g] 7 Fitting Position Front Axle Inner Diameter [mm] 21,5
	4339	BIRTH	Bush, steering shaft	Height [mm] 15 Weight [g] 5 Fitting Position Front Axle
	4453	BIRTH	Bush, steering shaft	Weight [g] 20 Fitting Position Front Axle Inner Diameter [mm] 18

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0296	BIRTH	Tie Rod End	Length 2 [mm] 127 Weight [g] 340 Inner Thread 1 [mm] M 12x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	5205	BIRTH	Bush, shock absorber	Height [mm] 45 Width [mm] 65 Weight [g] 210 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50412	BIRTH	Rubber Buffer, suspension	Height [mm] 79 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 20,5 Diameter 2 [mm] 18
	5160	BIRTH	Rubber Buffer, suspension	Height [mm] 185 Weight [g] 150 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Front Axle Diameter 1 [mm] 19 Diameter 2 [mm] 56

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6261	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 3,6 Width [mm] 70 Weight [g] 50 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 50

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0405	BIRTH	Ball Joint	Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,3
	CX0406	BIRTH	Ball Joint	Weight [g] 210 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,3

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2005	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 33 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2006	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 54 Width [mm] 59,3 Weight [g] 122 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 17

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4065	BIRTH	Nut, stub axle	Height [mm] 22 Width [mm] 30 Weight [g] 60 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front Fitting Position Rear

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4280	BIRTH	Stabiliser Mounting	Height [mm] 29,6 Width [mm] 37 Weight [g] 22 Fitting Position inner Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 18

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5164	BIRTH	Top Strut Mounting	Height [mm] 30 Length 2 [mm] 74 Length [mm] 96 Weight [g] 150 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 10,5

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1012	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2300 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 12,3 Material Sheet Steel
	BR1013	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2300 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 12,3 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3114	BIRTH	Wheel Hub	Height [mm] 80 Weight [g] 1325 Fitting Position Front Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117 Drum Diameter 58 Wheel Hub Diameter [mm] 58 Number of Teeth 20 Number of Holes 4
	3123	BIRTH	Wheel Hub	Height [mm] 61 Weight [g] 1500 Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3228	BIRTH	Wheel Hub	Height [mm] 76 Weight [g] 1300 Fitting Position Front Axle for wheel bearing diameter [mm] 35 Flange Ø [mm] 117 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
