Pedal Pad, accelerator pedal

Images	Code parts	Brand of parts	Name of parts	Information
	4082	BIRTH	Pedal Pad, accelerator pedal	Weight [g] 21 Fitting Position Front Axle

Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4081	BIRTH	Clutch Pedal Pad	Weight [g] 22 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8122	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 0,7
	8194	BIRTH	Cap, radiator	Weight [g] 40 Pressure [bar] 1
	8570	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1

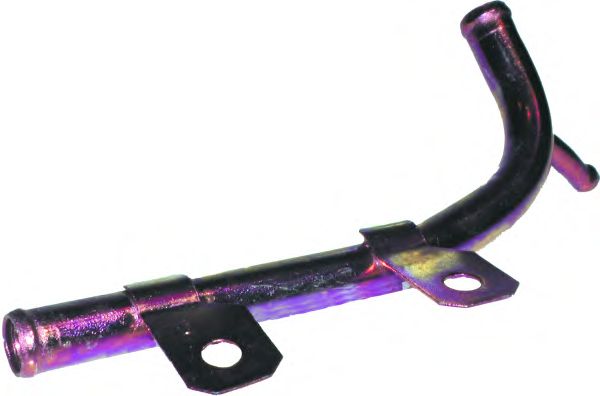

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	50593	BIRTH	Coolant Tube	Weight [g] 350
	5327	BIRTH	Coolant Tube	Weight [g] 360 Number of Holes 3
	8224	BIRTH	Coolant Tube	Weight [g] 15 Number of Holes 3
	8225	BIRTH	Coolant Tube	Weight [g] 20

Cap, oil filler

Images	Code parts	Brand of parts	Name of parts	Information
	8082	BIRTH	Cap, oil filler	Weight [g] 40

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4309	BIRTH	Engine Mounting	Height [mm] 50,3 Width [mm] 33,5 Length [mm] 42 Weight [g] 95 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 18
	5083	BIRTH	Engine Mounting	Weight [g] 300
	5084	BIRTH	Engine Mounting	Weight [g] 380 Fitting Position Rear
	5509	BIRTH	Engine Mounting	Weight [g] 270

Holder, exhaust pipe

Images	Code parts	Brand of parts	Name of parts	Information
	8179	BIRTH	Holder, exhaust pipe

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7092	BIRTH	Rubber Buffer, silencer	Weight [g] 21
	7093	BIRTH	Rubber Buffer, silencer	Weight [g] 75
	7130	BIRTH	Rubber Buffer, silencer	Weight [g] 100

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7001	BIRTH	Bellow, driveshaft	Height [mm] 85 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 25 Diameter 2 [mm] 60
	7011	BIRTH	Bellow, driveshaft	Height [mm] 73 Weight [g] 120 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 64
	7023	BIRTH	Bellow, driveshaft	Height [mm] 80 Weight [g] 62 Fitting Position Front Axle Diameter 1 [mm] 20 Diameter 2 [mm] 68 Material Elastomer
	7118	BIRTH	Bellow, driveshaft	Height [mm] 77 Weight [g] 110 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 69
	7119	BIRTH	Bellow, driveshaft	Height [mm] 77 Weight [g] 110 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 79

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3130	BIRTH	Tripod Hub, Drive shaft	Weight [g] 235 Fitting Position Front Axle Number of Teeth 19
	3384	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 20

Control Valve, coolant

Images	Code parts	Brand of parts	Name of parts	Information
	8334	BIRTH	Control Valve, coolant	Weight [g] 62
	8335	BIRTH	Control Valve, coolant	Weight [g] 60

Oil Dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8078	BIRTH	Oil Dipstick	Weight [g] 35 Fitting Position Front Axle

Repair Kit, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	4094	BIRTH	Repair Kit, gear lever	Weight [g] 100 Fitting Position Front Axle
	4095	BIRTH	Repair Kit, gear lever	Weight [g] 700 Fitting Position Front Axle
	4192	BIRTH	Repair Kit, gear lever
	6130	BIRTH	Repair Kit, gear lever	Weight [g] 830

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7057	BIRTH	Bellow, steering	Height [mm] 165 Weight [g] 78 Fitting Position Right Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 26
	7058	BIRTH	Bellow, steering	Height [mm] 125 Weight [g] 150 Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 42 Material Elastomer

Bush, steering shaft

Images	Code parts	Brand of parts	Name of parts	Information
	4139	BIRTH	Bush, steering shaft	Height [mm] 18 Width [mm] 28 Weight [g] 7 Fitting Position Front Axle Inner Diameter [mm] 21,5
	4339	BIRTH	Bush, steering shaft	Height [mm] 15 Weight [g] 5 Fitting Position Front Axle
	4453	BIRTH	Bush, steering shaft	Weight [g] 20 Fitting Position Front Axle Inner Diameter [mm] 18

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0411	BIRTH	Tie Rod Axle Joint	Length [mm] 282 Weight [g] 550 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0296	BIRTH	Tie Rod End	Length 2 [mm] 127 Weight [g] 340 Inner Thread 1 [mm] M 12x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	5205	BIRTH	Bush, shock absorber	Height [mm] 45 Width [mm] 65 Weight [g] 210 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50412	BIRTH	Rubber Buffer, suspension	Height [mm] 79 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 20,5 Diameter 2 [mm] 18
	5160	BIRTH	Rubber Buffer, suspension	Height [mm] 185 Weight [g] 150 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Front Axle Diameter 1 [mm] 19 Diameter 2 [mm] 56

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6261	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 3,6 Width [mm] 70 Weight [g] 50 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 50

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0405	BIRTH	Ball Joint	Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,3
	CX0406	BIRTH	Ball Joint	Weight [g] 210 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,3

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2005	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 33 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2006	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 54 Width [mm] 59,3 Weight [g] 122 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 17

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4065	BIRTH	Nut, stub axle	Height [mm] 22 Width [mm] 30 Weight [g] 60 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front Fitting Position Rear

Seal, wheel hub

Images	Code parts	Brand of parts	Name of parts	Information
	4014	BIRTH	Seal, wheel hub	Weight [g] 40 Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4280	BIRTH	Stabiliser Mounting	Height [mm] 29,6 Width [mm] 37 Weight [g] 22 Fitting Position inner Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 18

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1012	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2300 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 12,3 Material Sheet Steel
	BR1013	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2300 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 12,3 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3114	BIRTH	Wheel Hub	Height [mm] 80 Weight [g] 1325 Fitting Position Front Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117 Drum Diameter 58 Wheel Hub Diameter [mm] 58 Number of Teeth 20 Number of Holes 4
