Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8714	BIRTH	Coolant Flange	Weight [g] 240 Fitting Position Front Axle
	8898	BIRTH	Coolant Flange	Weight [g] 405

Radiator Cap

Images	Code parts	Brand of parts	Name of parts	Information
	8083	BIRTH	Radiator Cap	Weight [g] 40 Pressure [bar] 1,4

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8074	BIRTH	Water Tank, radiator	Weight [g] 240

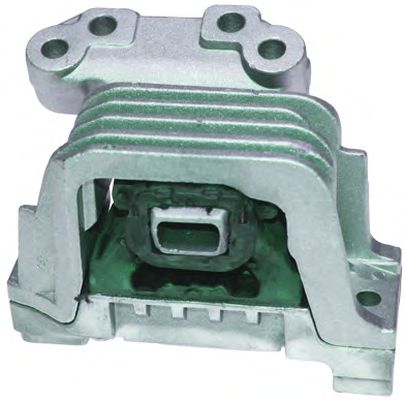

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	52322	BIRTH	Engine Mounting	Weight [g] 1570 Fitting Position Right

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7166	BIRTH	Bellow, driveshaft	Height [mm] 117 Weight [g] 59 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 77 Material Thermoplast
	7365	BIRTH	Bellow, driveshaft	Height [mm] 86 Weight [g] 92 Fitting Position Front Axle Diameter 1 [mm] 20 Diameter 2 [mm] 63

Oil Dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8945	BIRTH	Oil Dipstick	Weight [g] 60

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX7000	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 213 Length [mm] 229 Weight [g] 520 Outer Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD4659	BIRTH	Tie Rod End	Length 2 [mm] 213 Weight [g] 530 Inner Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12,2
	RS4659	BIRTH	Tie Rod End	Length 2 [mm] 213 Weight [g] 535 Inner Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,2

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	51123	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 190 Weight [g] 60 Fitting Position Front Axle

Spring Cap

Images	Code parts	Brand of parts	Name of parts	Information
	52234	BIRTH	Spring Cap	Height [mm] 14,5 Width [mm] 63,5 Weight [g] 60 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 14,3

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6260	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 20 Width [mm] 100 Weight [g] 150 Fitting Position Front Axle Inner Diameter [mm] 65

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0002	BIRTH	Ball Joint	Weight [g] 365 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 18

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2600	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 48 Width [mm] 57 Weight [g] 210 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 14,2
	2614	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 48 Width [mm] 56,5 Weight [g] 280 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 14,2

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4072	BIRTH	Nut, stub axle	Height [mm] 19 Width [mm] 30 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BD5013	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 330 Weight [g] 450 Outer Thread 2 [mm] M 10x1,5 Fitting Position Right Fitting Position Front Fitting Position Front Axle
	BS5013	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 330 Weight [g] 450 Fitting Position Left Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1853	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3500 Fitting Position Right Fitting Position Front Fitting Position Front Axle Cone Size [mm] 18 Material Sheet Steel
	BR1854	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3500 Fitting Position Left Fitting Position Front Fitting Position Front Axle Cone Size [mm] 18 Material Sheet Steel
