Cap, carburettor

Images	Code parts	Brand of parts	Name of parts	Information
	4844	BIRTH	Cap, carburettor	Weight [g] 55 Inner Diameter [mm] 51

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	6427	BIRTH	Release Fork, clutch	Width [mm] 16 Length [mm] 164 Weight [g] 360 Number of Teeth 19

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8562	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1,4

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8846	BIRTH	Coolant Flange	Weight [g] 210 Fitting Position Front Axle

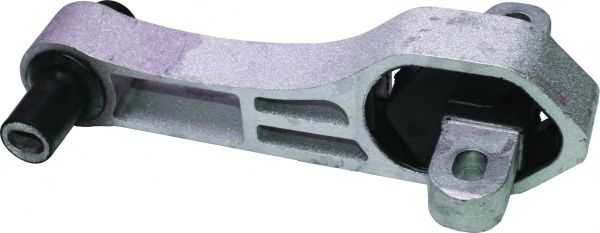

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	51405	BIRTH	Engine Mounting	Weight [g] 1444 Fitting Position Rear
	51526	BIRTH	Engine Mounting	Weight [g] 870 Fitting Position Rear

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7107	BIRTH	Bellow, driveshaft	Height [mm] 95 Weight [g] 97 Fitting Position Front Axle Diameter 1 [mm] 24,5 Diameter 2 [mm] 69 Material Elastomer
	7604	BIRTH	Bellow, driveshaft	Height [mm] 126 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 25,5 Diameter 2 [mm] 85

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3443	BIRTH	Tripod Hub, Drive shaft	Height [mm] 25 Weight [g] 450 Fitting Position Front Axle Diameter 1 [mm] 39,22 Diameter 2 [mm] 11,5 Inner Diameter [mm] 24,9 Number of Teeth 24

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7015	BIRTH	Bellow, steering	Height [mm] 230 Weight [g] 50 Fitting Position Front Axle Diameter 1 [mm] 12 Diameter 2 [mm] 55 Material Thermoplast

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0004	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 274 Length [mm] 293 Weight [g] 525 Outer Thread 1 [mm] M 14X1,5 Outer Thread 2 [mm] M 14X1,5 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD4678	BIRTH	Tie Rod End	Length 2 [mm] 113 Weight [g] 330 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 11,7
	RS4678	BIRTH	Tie Rod End	Length 2 [mm] 113 Weight [g] 330 Inner Thread 1 [mm] M 14X1,5 Outer Thread 2 [mm] M 10X1,5 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 11,7

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	51419	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 205 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 80 Diameter 2 [mm] 66

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50947	BIRTH	Rubber Buffer, suspension	Height [mm] 65 Weight [g] 56 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 20

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX9222	BIRTH	Ball Joint	Weight [g] 550 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Number of Holes 3

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2609	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 67,5 Width [mm] 44 Weight [g] 285 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 12
	2613	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 66 Width [mm] 72,65 Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12,4

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	50462	BIRTH	Mounting, axle beam	Height [mm] 100 Width [mm] 68 Weight [g] 550 Fitting Position Rear Axle Inner Diameter [mm] 13
	50865	BIRTH	Mounting, axle beam	Height [mm] 100,2 Width [mm] 67,3 Weight [g] 800 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 13

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX5102	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 290 Weight [g] 400 Outer Thread 2 [mm] M 10x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	51761	BIRTH	Top Strut Mounting	Weight [g] 730 Fitting Position Right Fitting Position Front Axle
	51762	BIRTH	Top Strut Mounting	Weight [g] 730 Fitting Position Left Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1942	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2800 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel
	BR1943	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2800 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3155	BIRTH	Wheel Hub	Height [mm] 63 Weight [g] 1115 Fitting Position Front Axle for wheel bearing diameter [mm] 35 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
	3157	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1300 Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3431	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1500 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
