Brake Disc

Images	Code parts	Brand of parts	Name of parts	Information
	3407	BIRTH	Brake Disc	Fitting Position Rear Axle Number of Holes 5

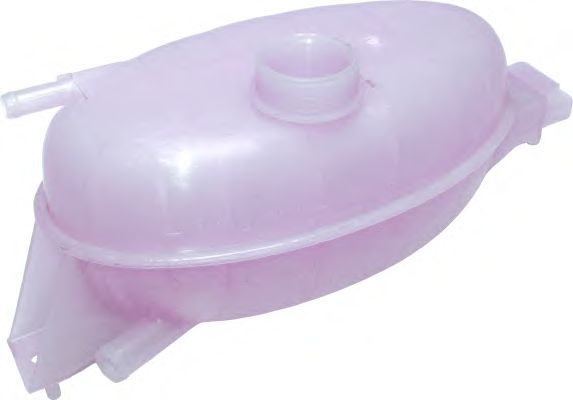

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8800	BIRTH	Water Tank, radiator	Weight [g] 485

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4951	BIRTH	Engine Mounting	Weight [g] 105 Fitting Position Front Axle
	51501	BIRTH	Engine Mounting	Width [mm] 53 Length 2 [mm] 110 Length [mm] 187 Weight [g] 800 Fitting Position Rear Fitting Position Lower Inner Diameter [mm] 14
	51506	BIRTH	Engine Mounting	Weight [g] 560 Fitting Position Left
	51887	BIRTH	Engine Mounting	Height [mm] 127,5 Length 2 [mm] 155 Length [mm] 185 Weight [g] 1400 Fitting Position Right Fitting Position Front Inner Diameter [mm] 13,5
	51979	BIRTH	Engine Mounting	Length 2 [mm] 87,5 Length [mm] 152,5 Weight [g] 475 Fitting Position Right Inner Diameter [mm] 12,2

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7005	BIRTH	Bellow, driveshaft	Height [mm] 88 Weight [g] 120 Fitting Position Front Axle Diameter 1 [mm] 42 Diameter 2 [mm] 74

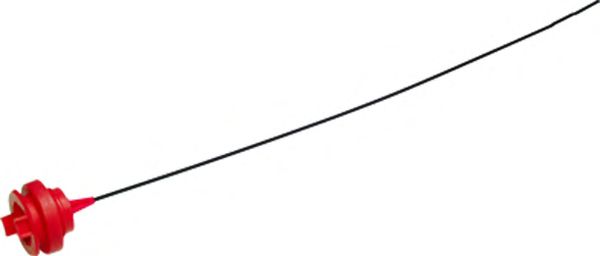

Oil Dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8771	BIRTH	Oil Dipstick	Weight [g] 37 Fitting Position Front Axle

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7661	BIRTH	Bellow, steering	Height [mm] 205 Weight [g] 115 Diameter 1 [mm] 13 Diameter 2 [mm] 55

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0044	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 264 Length [mm] 280 Weight [g] 510 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0041	BIRTH	Tie Rod End	Length 2 [mm] 210 Weight [g] 635 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12,5
	RS0041	BIRTH	Tie Rod End	Length 2 [mm] 210 Weight [g] 635 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,5

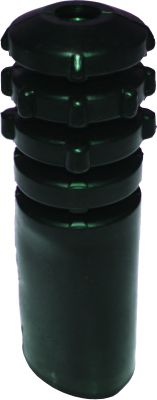

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	52107	BIRTH	Rubber Buffer, suspension	Height [mm] 235 Weight [g] 340 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 24 Diameter 2 [mm] 70

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX9242	BIRTH	Ball Joint	Weight [g] 510 Outer Thread 2 [mm] M 16X1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 17,9

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2517	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 55 Weight [g] 500 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 18
	2633	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 54 Width [mm] 58,3 Weight [g] 335 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 15,2

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	51881	BIRTH	Mounting, axle beam	Height [mm] 80 Width [mm] 54 Weight [g] 580 Fitting Position Front Axle Inner Diameter [mm] 16,5
	52059	BIRTH	Mounting, axle beam	Height [mm] 70 Width [mm] 71 Weight [g] 460 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 12,5

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX0012	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 279 Weight [g] 320 Outer Thread 2 [mm] M 10x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

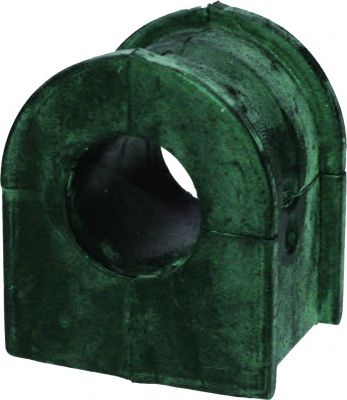

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4115	BIRTH	Stabiliser Mounting	Height [mm] 54 Width [mm] 46,5 Length [mm] 38,5 Weight [g] 75 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 23
	4950	BIRTH	Stabiliser Mounting	Length [mm] 38,5 Weight [g] 60 Fitting Position Front Axle Inner Diameter [mm] 22

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	51883	BIRTH	Top Strut Mounting	Height [mm] 73,5 Width [mm] 162,5 Weight [g] 1300 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 40

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1741	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 5300 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17,9 Material Sheet Steel to model year 2006
	BR1742	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 5300 Outer Thread 2 [mm] M 16x1,5 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17,9 Material Sheet Steel to model year 2006
	BR1988	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 7300 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 17,9 Material Cast Iron from model year 2006
	BR1989	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 7300 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 17,9 Material Cast Iron from model year 2006
