Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8045	BIRTH	Water Tank, radiator	Weight [g] 440

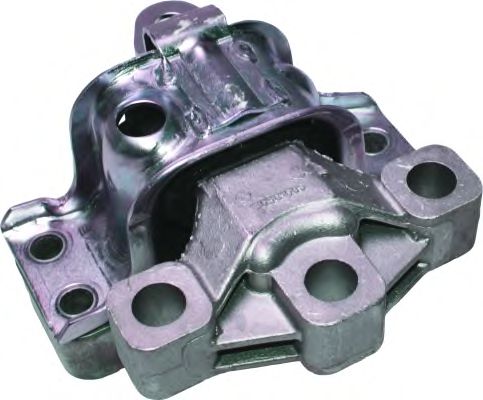

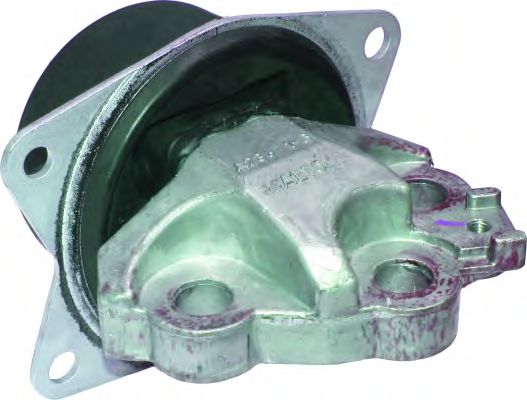

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	51226	BIRTH	Engine Mounting	Weight [g] 2654
	51227	BIRTH	Engine Mounting	Weight [g] 885
	51265	BIRTH	Engine Mounting	Weight [g] 866
	51278	BIRTH	Engine Mounting	Weight [g] 1640
	51685	BIRTH	Engine Mounting	Weight [g] 1850

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7493	BIRTH	Bellow, driveshaft	Height [mm] 129 Weight [g] 95 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 92 Material Thermoplast
	7555	BIRTH	Bellow, driveshaft	Height [mm] 107,2 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 26,2 Diameter 2 [mm] 87,8 Material Thermoplast

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3403	BIRTH	Tripod Hub, Drive shaft	Weight [g] 450 Fitting Position Front Axle Number of Teeth 26

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7507	BIRTH	Bellow, steering	Height [mm] 195 Weight [g] 135 Fitting Position Front Axle Diameter 1 [mm] 34 Diameter 2 [mm] 50 Material Thermoplast

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX7017	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 213,5 Length [mm] 230,5 Weight [g] 1100 Outer Thread 1 [mm] M 20x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD4627	BIRTH	Tie Rod End	Length 2 [mm] 117 Weight [g] 650 Inner Thread 1 [mm] M 20x1,5 Outer Thread 2 [mm] M 12x1,5 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 14,6
	RS4627	BIRTH	Tie Rod End	Length 2 [mm] 117 Weight [g] 650 Inner Thread 1 [mm] M 20x1,5 Outer Thread 2 [mm] M 12x1,5 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 14,6

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50945	BIRTH	Rubber Buffer, suspension	Height [mm] 175 Weight [g] 185 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 18 Diameter 2 [mm] 55
	50946	BIRTH	Rubber Buffer, suspension	Height [mm] 169 Weight [g] 80 Fitting Position Rear Axle Diameter 1 [mm] 13,6 Diameter 2 [mm] 61

Spring Cap

Images	Code parts	Brand of parts	Name of parts	Information
	50052	BIRTH	Spring Cap	Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Rear Axle

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2014	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 40 Width [mm] 43,5 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 13,3
	2031	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 40 Width [mm] 41,2 Weight [g] 180 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 13,3
	2113	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 76 Width [mm] 42 Weight [g] 390 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 14
	2114	BIRTH	Control Arm-/Trailing Arm Bush	Width [mm] 49 Length 2 [mm] 104 Length [mm] 128 Inner Thread 2 [mm] M 14x2 Fitting Position inner Fitting Position Lower Fitting Position Front Axle
	2521	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 97 Width [mm] 60,5 Weight [g] 1240 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 39
	2522	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 97 Width [mm] 60,5 Weight [g] 1240 Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 39

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	50002	BIRTH	Mounting, axle beam	Height [mm] 55 Width [mm] 47,1 Fitting Position Rear Axle Inner Diameter [mm] 12
	51277	BIRTH	Mounting, axle beam	Height [mm] 63,3 Width [mm] 60 Weight [g] 535 Fitting Position Rear Axle Inner Diameter [mm] 16
	51308	BIRTH	Mounting, axle beam	Height [mm] 64 Width [mm] 47,1 Weight [g] 330 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 14

Repair Kit, stabilizer coupling rod

Images	Code parts	Brand of parts	Name of parts	Information
	4113	BIRTH	Repair Kit, stabilizer coupling rod	Width [mm] 22 Length 2 [mm] 790 Weight [g] 4600 Fitting Position Front Axle

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BD0021	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 101,5 Weight [g] 310 Outer Thread 2 [mm] M 12x1,75 Fitting Position Right Fitting Position Front Axle
	BD0022	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 116 Weight [g] 300 Outer Thread 2 [mm] M 12x1,75 Fitting Position Right Fitting Position Rear Axle
	BS0021	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 101,5 Weight [g] 290 Outer Thread 2 [mm] M 12x1,75 Fitting Position Left Fitting Position Front Axle
	BS0022	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 116 Weight [g] 300 Outer Thread 2 [mm] M 12x1,75 Fitting Position Left Fitting Position Rear Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4798	BIRTH	Stabiliser Mounting	Height [mm] 45 Width [mm] 46 Length [mm] 36 Weight [g] 80 Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 21

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50917	BIRTH	Top Strut Mounting	Weight [g] 908 Fitting Position Rear Axle
	50918	BIRTH	Top Strut Mounting	Weight [g] 1140 Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1767	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 1210 Outer Thread 2 [mm] M 10X1,25 Fitting Position Right Fitting Position Front Fitting Position Upper Fitting Position Front Axle Cone Size [mm] 12,6 Material Aluminium
	BR1768	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 1210 Outer Thread 2 [mm] M 10X1,25 Fitting Position Left Fitting Position Front Fitting Position Upper Fitting Position Front Axle Cone Size [mm] 12,6 Material Aluminium
	BR1773	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 5600 Outer Thread 2 [mm] M 14X1,5 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 20 Material Aluminium
	BR1774	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 5600 Outer Thread 2 [mm] M 14X1,5 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 20 Material Aluminium
