Sensor, wheel speed

Images	Code parts	Brand of parts	Name of parts	Information
	52213	BIRTH	Sensor, wheel speed	Length 2 [mm] 1270 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4955	BIRTH	Release Fork, clutch	Height [mm] 64,5 Length [mm] 72 Weight [g] 150 Inner Diameter [mm] 21

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8500	BIRTH	Coolant Flange	Height [mm] 80 Width [mm] 57 Length 2 [mm] 60 Length [mm] 75 Weight [g] 95 Fitting Position Front Axle

Radiator Cap

Images	Code parts	Brand of parts	Name of parts	Information
	8083	BIRTH	Radiator Cap	Weight [g] 40 Pressure [bar] 1,4

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50117	BIRTH	Engine Mounting	Weight [g] 850 Fitting Position Right Fitting Position Upper

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7096	BIRTH	Bellow, driveshaft	Height [mm] 118 Weight [g] 85 Fitting Position Front Axle Diameter 1 [mm] 35 Diameter 2 [mm] 84 Material Thermoplast
	7102	BIRTH	Bellow, driveshaft	Height [mm] 96 Weight [g] 108 Fitting Position Front Axle Diameter 1 [mm] 35 Diameter 2 [mm] 70

Oil Drain Plug, oil pan

Images	Code parts	Brand of parts	Name of parts	Information
	8731	BIRTH	Oil Drain Plug, oil pan	Weight [g] 20 Outer Thread 1 [mm] M 14x1,25

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0014	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 183 Length [mm] 199 Weight [g] 500 Outer Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	TD0004	BIRTH	Tie Rod End	Length 2 [mm] 230 Weight [g] 650 Outer Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 10x1,5 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12,2
	TS0004	BIRTH	Tie Rod End	Length 2 [mm] 230 Weight [g] 650 Outer Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 10x1,5 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,2

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX9202	BIRTH	Ball Joint	Width [mm] 52 Weight [g] 350 Outer Thread 1 [mm] M 40X1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16

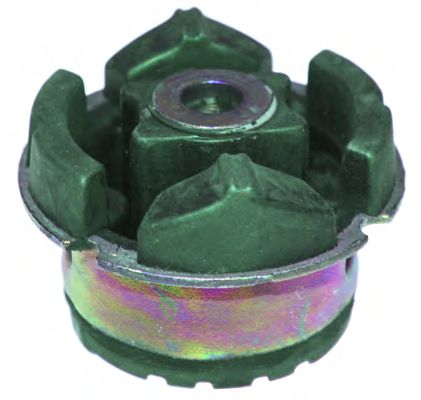

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2620	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 76 Width [mm] 42 Weight [g] 320 Inner Thread 2 [mm] M 12x1,75 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 17,9
	2623	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 39 Width [mm] 40 Weight [g] 160 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 14

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	50113	BIRTH	Mounting, axle beam	Height [mm] 66 Width [mm] 75 Weight [g] 515 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 15

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4072	BIRTH	Nut, stub axle	Height [mm] 19 Width [mm] 30 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX0013	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 322 Weight [g] 460 Outer Thread 2 [mm] M 12x1,75 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4859	BIRTH	Stabiliser Mounting	Height [mm] 43 Width [mm] 46 Length [mm] 40 Weight [g] 80 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 23,5

Suspension Kit

Images	Code parts	Brand of parts	Name of parts	Information
	51299	BIRTH	Suspension Kit	Weight [g] 700 Fitting Position Right Fitting Position Left Fitting Position Rear Axle
	6386	BIRTH	Suspension Kit	Length [mm] 198 Weight [g] 1900 Fitting Position Right Fitting Position Rear Axle Inner Diameter [mm] 30
	6387	BIRTH	Suspension Kit	Length [mm] 198 Weight [g] 1560 Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 36
	6388	BIRTH	Suspension Kit	Length [mm] 317 Weight [g] 1600 Fitting Position Right Fitting Position Left Fitting Position Rear Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1895	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 4500 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Steel
	BR1896	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 4800 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Steel
