Cover, timing belt

Images	Code parts	Brand of parts	Name of parts	Information
	8491	BIRTH	Cover, timing belt	Weight [g] 175
	8848	BIRTH	Cover, timing belt	Weight [g] 150

Cap, carburettor

Images	Code parts	Brand of parts	Name of parts	Information
	4844	BIRTH	Cap, carburettor	Weight [g] 55 Inner Diameter [mm] 51

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4850	BIRTH	Release Fork, clutch	Weight [g] 435 Fitting Position Front Axle
	4990	BIRTH	Release Fork, clutch	Height [mm] 58,6 Width [mm] 28 Weight [g] 80 Inner Diameter [mm] 25
	6187	BIRTH	Release Fork, clutch	Length 2 [mm] 16 Length [mm] 180 Weight [g] 365 Number of Teeth 19

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8562	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1,4

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8846	BIRTH	Coolant Flange	Weight [g] 210 Fitting Position Front Axle

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	51065	BIRTH	Coolant Tube	Weight [g] 385

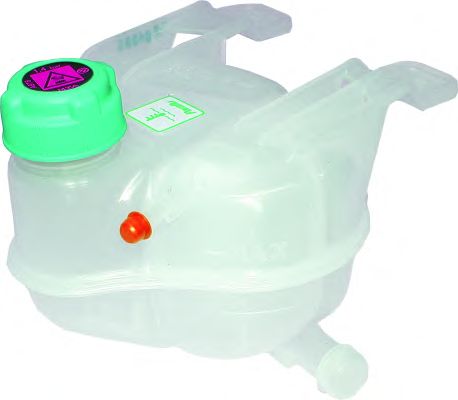

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8561	BIRTH	Water Tank, radiator	Weight [g] 490 Fitting Position Left Fitting Position Front

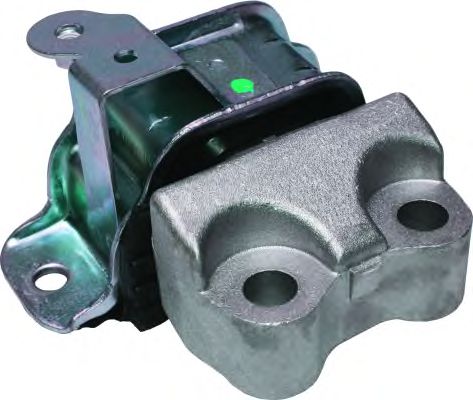

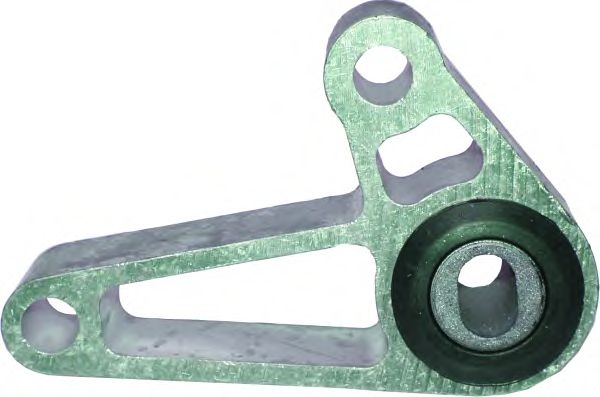

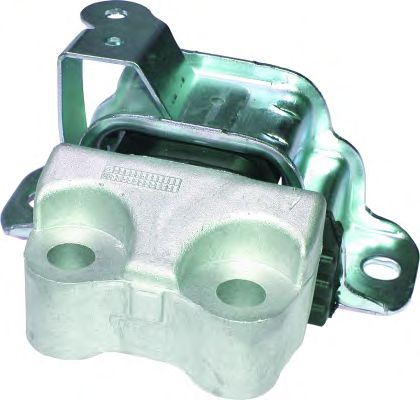

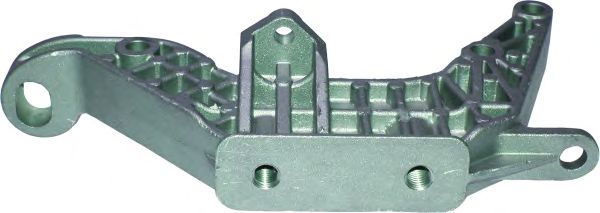

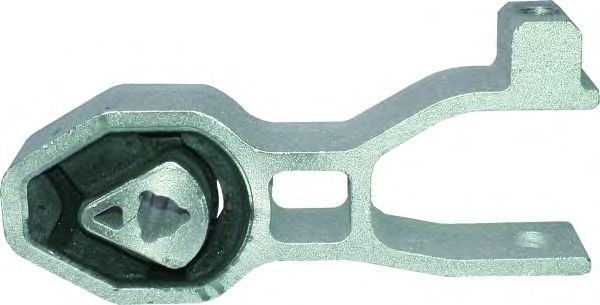

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	51003	BIRTH	Engine Mounting	Weight [g] 1470
	51005	BIRTH	Engine Mounting	Weight [g] 990
	51007	BIRTH	Engine Mounting	Weight [g] 300
	51011	BIRTH	Engine Mounting	Length 2 [mm] 109,3 Length [mm] 172 Weight [g] 360 Inner Thread 2 [mm] M 12x1,75 Inner Diameter [mm] 12,5
	51520	BIRTH	Engine Mounting	Weight [g] 1375
	51798	BIRTH	Engine Mounting	Weight [g] 1475

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7734	BIRTH	Rubber Buffer, silencer	Weight [g] 65

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3438	BIRTH	Tripod Hub, Drive shaft	Height [mm] 24 Weight [g] 300 Fitting Position Front Axle Inner Diameter [mm] 32 Number of Teeth 27

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7015	BIRTH	Bellow, steering	Height [mm] 230 Weight [g] 50 Fitting Position Front Axle Diameter 1 [mm] 12 Diameter 2 [mm] 55 Material Thermoplast

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0006	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 294 Length [mm] 307 Weight [g] 560 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD4630	BIRTH	Tie Rod End	Length 2 [mm] 113 Weight [g] 340 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10X1,5 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 11,6
	RS4630	BIRTH	Tie Rod End	Length 2 [mm] 113 Weight [g] 340 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10X1,5 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 11,6

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	51419	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 205 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 80 Diameter 2 [mm] 66

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50944	BIRTH	Rubber Buffer, suspension	Height [mm] 305 Weight [g] 110 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Diameter 1 [mm] 11 Diameter 2 [mm] 60 Material PU (Polyurethane)
	50947	BIRTH	Rubber Buffer, suspension	Height [mm] 65 Weight [g] 56 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 20

Spring Cap

Images	Code parts	Brand of parts	Name of parts	Information
	50916	BIRTH	Spring Cap	Height [mm] 12 Width [mm] 69 Weight [g] 65 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12,5

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX9222	BIRTH	Ball Joint	Weight [g] 550 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Number of Holes 3

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2609	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 67,5 Width [mm] 44 Weight [g] 285 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 12
	2613	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 66 Width [mm] 72,65 Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12,4

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	50914	BIRTH	Mounting, axle beam	Weight [g] 42 Fitting Position Right Fitting Position Rear Axle
	50915	BIRTH	Mounting, axle beam	Weight [g] 45 Fitting Position Left Fitting Position Rear Axle
	51020	BIRTH	Mounting, axle beam	Height [mm] 100 Width [mm] 68,5 Weight [g] 440 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 12

Repair Kit, stabilizer coupling rod

Images	Code parts	Brand of parts	Name of parts	Information
	4109	BIRTH	Repair Kit, stabilizer coupling rod	Width [mm] 18 Length [mm] 1050 Weight [g] 3000 Fitting Position inner Fitting Position Front Axle

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX5027	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 301 Weight [g] 375 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4934	BIRTH	Stabiliser Mounting	Height [mm] 35,7 Width [mm] 38 Length [mm] 35 Weight [g] 120 Fitting Position inner Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 16,7

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50912	BIRTH	Top Strut Mounting	Weight [g] 330 Fitting Position Left Fitting Position Rear Axle
	50913	BIRTH	Top Strut Mounting	Weight [g] 330 Fitting Position Right Fitting Position Rear Axle
	50958	BIRTH	Top Strut Mounting	Weight [g] 550 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	51761	BIRTH	Top Strut Mounting	Weight [g] 730 Fitting Position Right Fitting Position Front Axle
	51762	BIRTH	Top Strut Mounting	Weight [g] 730 Fitting Position Left Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1942	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2800 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel
	BR1943	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2800 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3401	BIRTH	Wheel Hub	Height [mm] 64,5 Weight [g] 1490 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 52 for wheel bearing diameter [mm] 30 Flange Ø [mm] 120 Drum Diameter 60 Wheel Hub Diameter [mm] 56,5 Number of Holes 4
	3431	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1500 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3448	BIRTH	Wheel Hub	Height [mm] 70,5 Weight [g] 1450 Fitting Position Front Axle for wheel bearing diameter [mm] 35 Flange Ø [mm] 120 Drum Diameter 60 Wheel Hub Diameter [mm] 56,5 Number of Teeth 22 Number of Holes 4
