Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4878	BIRTH	Clutch Pedal Pad	Weight [g] 40 Fitting Position Front Axle

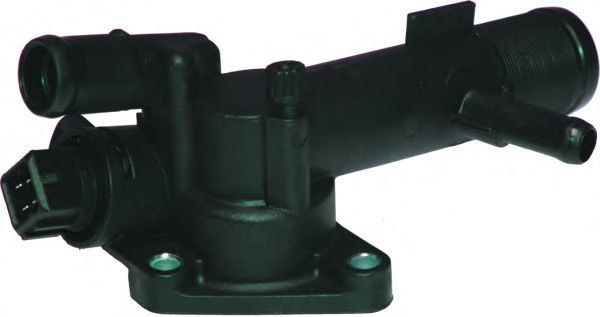

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8554	BIRTH	Coolant Flange	Weight [g] 150 Fitting Position Front Axle
	8713	BIRTH	Coolant Flange	Weight [g] 175 Material Plastic
	8716	BIRTH	Coolant Flange	Weight [g] 190

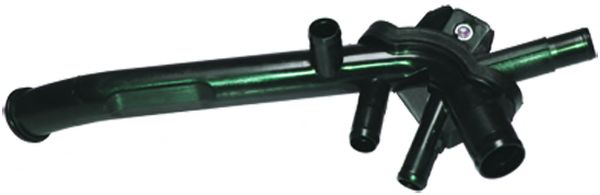

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	51508	BIRTH	Coolant Tube	Weight [g] 410

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8414	BIRTH	Water Tank, radiator	Weight [g] 288
	8530	BIRTH	Water Tank, radiator	Weight [g] 290 Fitting Position Front

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	51603	BIRTH	Engine Mounting	Weight [g] 20

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7135	BIRTH	Rubber Buffer, silencer	Weight [g] 26

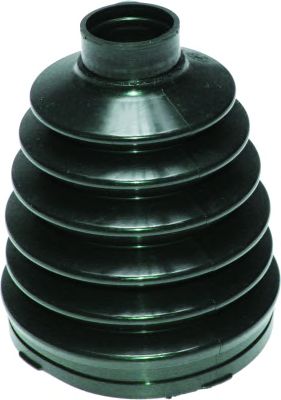

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7615	BIRTH	Bellow, driveshaft	Height [mm] 104 Weight [g] 96 Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 65
	7623	BIRTH	Bellow, driveshaft	Height [mm] 105 Weight [g] 54 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 24 Diameter 2 [mm] 81 Material Thermoplast

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3452	BIRTH	Tripod Hub, Drive shaft	Height [mm] 24 Weight [g] 300 Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 12 Inner Diameter [mm] 22,5 Number of Teeth 29

Repair Kit, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	6283	BIRTH	Repair Kit, gear lever	Length [mm] 165 Weight [g] 285
	6434	BIRTH	Repair Kit, gear lever	Length [mm] 117 Weight [g] 115 Inner Diameter [mm] 14

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7724	BIRTH	Bellow, steering	Height [mm] 155 Weight [g] 70 Fitting Position Right Fitting Position Left Diameter 1 [mm] 9 Diameter 2 [mm] 29 Material Elastomer

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX7011	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 299 Length [mm] 316 Weight [g] 585 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 12x1 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0015	BIRTH	Tie Rod End	Length 2 [mm] 90 Weight [g] 300 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12,2
	RS0015	BIRTH	Tie Rod End	Length 2 [mm] 90 Weight [g] 300 Inner Thread 1 [mm] M 10x1,25 Outer Thread 2 [mm] M 14x1,5 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12,2

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	51599	BIRTH	Bush, shock absorber	Weight [g] 100 Fitting Position Upper Fitting Position Rear Axle
	51621	BIRTH	Bush, shock absorber	Weight [g] 80 Fitting Position Lower Fitting Position Rear Axle

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	5622	BIRTH	Rubber Buffer, suspension	Height [mm] 196 Weight [g] 170 Fitting Position Front Axle Diameter 1 [mm] 19 Diameter 2 [mm] 54

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6267	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 9 Width [mm] 56 Weight [g] 64 Fitting Position Front Axle Inner Diameter [mm] 16,5

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0928	BIRTH	Ball Joint	Weight [g] 530 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2260	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 46 Width [mm] 45,4 Weight [g] 155 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2422	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 28 Width [mm] 77,2 Weight [g] 220 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 43

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	2446	BIRTH	Mounting, axle beam	Height [mm] 75 Width [mm] 74,3 Weight [g] 370 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 34
	51594	BIRTH	Mounting, axle beam	Weight [g] 305 Fitting Position Rear Axle

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4220	BIRTH	Nut, stub axle	Height [mm] 17,5 Width [mm] 30 Inner Thread 1 [mm] M 20x1,5 Fitting Position Front Fitting Position Rear

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	5770	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length [mm] 74 Weight [g] 105 Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4587	BIRTH	Stabiliser Mounting	Height [mm] 47,2 Width [mm] 35,5 Length [mm] 42,2 Weight [g] 55 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 22

Suspension Kit

Images	Code parts	Brand of parts	Name of parts	Information
	6369	BIRTH	Suspension Kit	Weight [g] 350 Fitting Position Rear Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1442	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2130 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel
	BR1443	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 2130 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 16 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3238	BIRTH	Wheel Hub	Height [mm] 76 Weight [g] 1446 Fitting Position Front Axle for wheel bearing diameter [mm] 37 Flange Ø [mm] 121 Drum Diameter 61 Wheel Hub Diameter [mm] 60 Number of Teeth 21 Number of Holes 4
