Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4990	BIRTH	Release Fork, clutch	Height [mm] 58,6 Width [mm] 28 Weight [g] 80 Inner Diameter [mm] 25

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8562	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1,4

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8842	BIRTH	Coolant Flange	Weight [g] 480 Fitting Position Front Axle

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8073	BIRTH	Water Tank, radiator	Weight [g] 500
	8841	BIRTH	Water Tank, radiator	Weight [g] 370

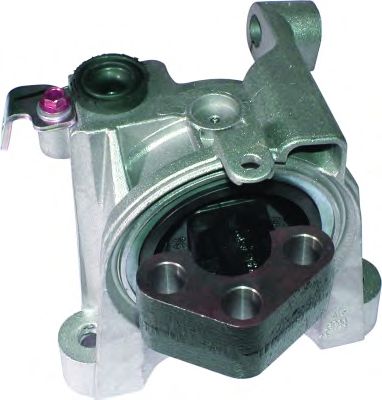

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50390	BIRTH	Engine Mounting	Weight [g] 2700 Fitting Position Front
	50398	BIRTH	Engine Mounting	Weight [g] 314 Fitting Position Front
	50399	BIRTH	Engine Mounting	Width [mm] 34 Length [mm] 200 Weight [g] 340 Fitting Position Front Inner Diameter [mm] 20
	51764	BIRTH	Engine Mounting	Weight [g] 1000 Fitting Position Left

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7670	BIRTH	Rubber Buffer, silencer	Weight [g] 350 Fitting Position Front
	7671	BIRTH	Rubber Buffer, silencer	Weight [g] 185 Fitting Position Rear

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7311	BIRTH	Bellow, driveshaft	Height [mm] 97 Weight [g] 90 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 90 Material Thermoplast
	7324	BIRTH	Bellow, driveshaft	Height [mm] 107 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 86 Material Thermoplast
	7746	BIRTH	Bellow, driveshaft	Height [mm] 88 Weight [g] 95 Fitting Position Front Axle Diameter 1 [mm] 21 Diameter 2 [mm] 68 Material Elastomer

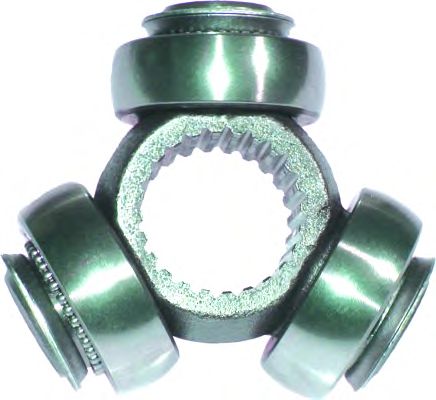

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3385	BIRTH	Tripod Hub, Drive shaft	Weight [g] 430 Fitting Position Front Axle Number of Teeth 24

Oil Drain Plug, oil pan

Images	Code parts	Brand of parts	Name of parts	Information
	4754	BIRTH	Oil Drain Plug, oil pan	Height [mm] 32 Weight [g] 60 Outer Thread 1 [mm] M 18x1,5

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7381	BIRTH	Bellow, steering	Height [mm] 210 Weight [g] 130 Fitting Position Front Axle Diameter 1 [mm] 13 Diameter 2 [mm] 55 Material Thermoplast

Joint, steering column

Images	Code parts	Brand of parts	Name of parts	Information
	51053	BIRTH	Joint, steering column	Weight [g] 1300 Fitting Position Front Axle

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0083	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 310 Length [mm] 317 Weight [g] 570 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0065	BIRTH	Tie Rod End	Length 2 [mm] 95,4 Weight [g] 420 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 11,8

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	4775	BIRTH	Bush, shock absorber	Height [mm] 32,5 Width [mm] 53 Weight [g] 50 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 17,5

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50001	BIRTH	Rubber Buffer, suspension	Height [mm] 33,5 Width [mm] 58 Weight [g] 55 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 17,5
	50876	BIRTH	Rubber Buffer, suspension	Height [mm] 208 Weight [g] 60 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle
	50877	BIRTH	Rubber Buffer, suspension	Height [mm] 140 Weight [g] 185 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle
	51749	BIRTH	Rubber Buffer, suspension	Height [mm] 33 Width [mm] 49,5 Weight [g] 45 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 17,5

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6389	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 9,5 Width [mm] 110 Weight [g] 180 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 73,5
	6420	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 9,5 Width [mm] 110 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 73

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0135	BIRTH	Ball Joint	Length [mm] 93,5 Weight [g] 480 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 17

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2419	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 67,5 Width [mm] 42 Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12,5
	2420	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 65 Width [mm] 60,5 Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12,5
	2626	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 67,5 Width [mm] 42 Weight [g] 280 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 14

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	50865	BIRTH	Mounting, axle beam	Height [mm] 100,2 Width [mm] 67,3 Weight [g] 800 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 13
	51304	BIRTH	Mounting, axle beam	Height [mm] 35 Width [mm] 44 Weight [g] 118 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 18

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4500	BIRTH	Nut, stub axle	Height [mm] 29,5 Width [mm] 32 Weight [g] 60 Inner Thread 1 [mm] M 22x1,5 Fitting Position Front Flange Ø [mm] 36

Repair Kit, stabilizer coupling rod

Images	Code parts	Brand of parts	Name of parts	Information
	4110	BIRTH	Repair Kit, stabilizer coupling rod	Width [mm] 19 Length 2 [mm] 838,2 Weight [g] 3250 Fitting Position Front Axle

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX0064	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 290 Weight [g] 380 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4866	BIRTH	Stabiliser Mounting	Height [mm] 44,5 Width [mm] 45,5 Length [mm] 41 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 17
	4941	BIRTH	Stabiliser Mounting	Height [mm] 46 Width [mm] 45 Length [mm] 41 Weight [g] 90 Fitting Position Front Axle Inner Diameter [mm] 16

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50861	BIRTH	Top Strut Mounting	Height [mm] 48,6 Weight [g] 360 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12,2

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1625	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3380 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Steel
	BR1626	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3380 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Steel
	BR2013	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3200 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Material Steel
	BR2014	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3200 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Material Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3146	BIRTH	Wheel Hub	Height [mm] 71,5 Weight [g] 1300 Fitting Position Right Fitting Position Left Fitting Position Front Axle for wheel bearing diameter [mm] 37 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 25 Number of Holes 4
	3301	BIRTH	Wheel Hub	Height [mm] 71,5 Weight [g] 1390 Fitting Position Right Fitting Position Left Fitting Position Front Axle for wheel bearing diameter [mm] 42 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 25 Number of Holes 4
	3400	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1490 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3431	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1500 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
