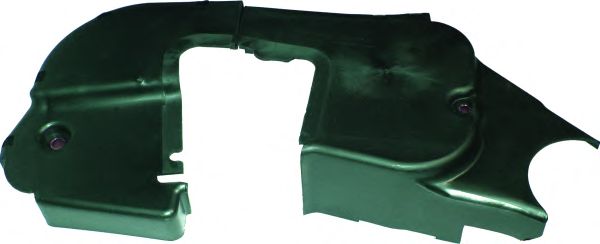

Cover, timing belt

Images	Code parts	Brand of parts	Name of parts	Information
	8430	BIRTH	Cover, timing belt	Weight [g] 440 Fitting Position Upper Colour Black
	8847	BIRTH	Cover, timing belt	Weight [g] 140

Cap, carburettor

Images	Code parts	Brand of parts	Name of parts	Information
	4763	BIRTH	Cap, carburettor	Weight [g] 27 Inner Diameter [mm] 50

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4850	BIRTH	Release Fork, clutch	Weight [g] 435 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8562	BIRTH	Cap, radiator	Weight [g] 50 Pressure [bar] 1,4

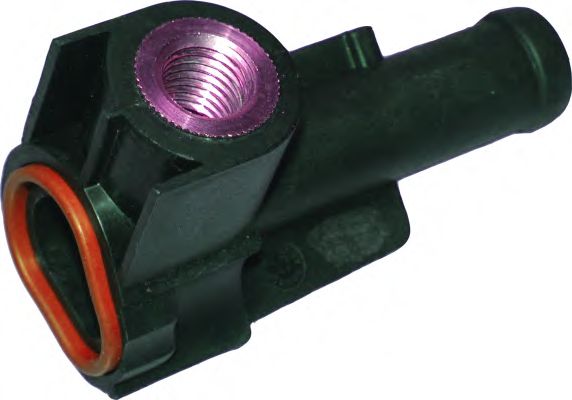

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	51065	BIRTH	Coolant Tube	Weight [g] 385
	8768	BIRTH	Coolant Tube	Weight [g] 45

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8841	BIRTH	Water Tank, radiator	Weight [g] 370

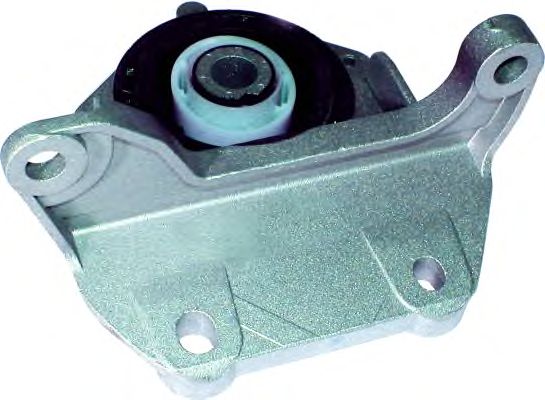

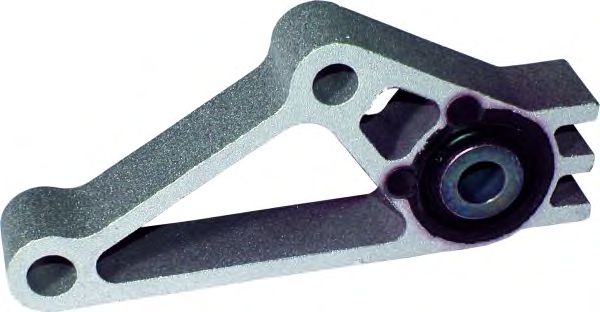

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50391	BIRTH	Engine Mounting	Weight [g] 1400 Fitting Position Front
	50397	BIRTH	Engine Mounting	Weight [g] 1400
	50400	BIRTH	Engine Mounting	Weight [g] 300 Fitting Position Front

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7484	BIRTH	Rubber Buffer, silencer	Weight [g] 50
	7670	BIRTH	Rubber Buffer, silencer	Weight [g] 350 Fitting Position Front
	7671	BIRTH	Rubber Buffer, silencer	Weight [g] 185 Fitting Position Rear

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3383	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 21

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7381	BIRTH	Bellow, steering	Height [mm] 210 Weight [g] 130 Fitting Position Front Axle Diameter 1 [mm] 13 Diameter 2 [mm] 55 Material Thermoplast

Joint, steering column

Images	Code parts	Brand of parts	Name of parts	Information
	51053	BIRTH	Joint, steering column	Weight [g] 1300 Fitting Position Front Axle

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0083	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 310 Length [mm] 317 Weight [g] 570 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0065	BIRTH	Tie Rod End	Length 2 [mm] 95,4 Weight [g] 420 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 11,8

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	4775	BIRTH	Bush, shock absorber	Height [mm] 32,5 Width [mm] 53 Weight [g] 50 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 17,5

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50001	BIRTH	Rubber Buffer, suspension	Height [mm] 33,5 Width [mm] 58 Weight [g] 55 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 17,5
	50876	BIRTH	Rubber Buffer, suspension	Height [mm] 208 Weight [g] 60 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle
	50877	BIRTH	Rubber Buffer, suspension	Height [mm] 140 Weight [g] 185 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle
	51749	BIRTH	Rubber Buffer, suspension	Height [mm] 33 Width [mm] 49,5 Weight [g] 45 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 17,5

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6389	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 9,5 Width [mm] 110 Weight [g] 180 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 73,5
	6420	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 9,5 Width [mm] 110 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 73

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0135	BIRTH	Ball Joint	Length [mm] 93,5 Weight [g] 480 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 17

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2419	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 67,5 Width [mm] 42 Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12,5
	2420	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 65 Width [mm] 60,5 Weight [g] 200 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12,5
	2626	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 67,5 Width [mm] 42 Weight [g] 280 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 14

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	50865	BIRTH	Mounting, axle beam	Height [mm] 100,2 Width [mm] 67,3 Weight [g] 800 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 13

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4500	BIRTH	Nut, stub axle	Height [mm] 29,5 Width [mm] 32 Weight [g] 60 Inner Thread 1 [mm] M 22x1,5 Fitting Position Front Flange Ø [mm] 36

Repair Kit, stabilizer coupling rod

Images	Code parts	Brand of parts	Name of parts	Information
	4110	BIRTH	Repair Kit, stabilizer coupling rod	Width [mm] 19 Length 2 [mm] 838,2 Weight [g] 3250 Fitting Position Front Axle

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX0064	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 290 Weight [g] 380 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4866	BIRTH	Stabiliser Mounting	Height [mm] 44,5 Width [mm] 45,5 Length [mm] 41 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 17
	4941	BIRTH	Stabiliser Mounting	Height [mm] 46 Width [mm] 45 Length [mm] 41 Weight [g] 90 Fitting Position Front Axle Inner Diameter [mm] 16

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50861	BIRTH	Top Strut Mounting	Height [mm] 48,6 Weight [g] 360 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12,2

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1625	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3380 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Steel
	BR1626	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3380 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Steel
	BR2013	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3200 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Material Steel
	BR2014	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3200 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Material Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3146	BIRTH	Wheel Hub	Height [mm] 71,5 Weight [g] 1300 Fitting Position Right Fitting Position Left Fitting Position Front Axle for wheel bearing diameter [mm] 37 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 25 Number of Holes 4
	3155	BIRTH	Wheel Hub	Height [mm] 63 Weight [g] 1115 Fitting Position Front Axle for wheel bearing diameter [mm] 35 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
	3400	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1490 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3431	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1500 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
