Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4081	BIRTH	Clutch Pedal Pad	Weight [g] 22 Fitting Position Front Axle

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4990	BIRTH	Release Fork, clutch	Height [mm] 58,6 Width [mm] 28 Weight [g] 80 Inner Diameter [mm] 25

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8568	BIRTH	Cap, radiator	Weight [g] 45 Pressure [bar] 1,4

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8689	BIRTH	Water Tank, radiator	Weight [g] 500

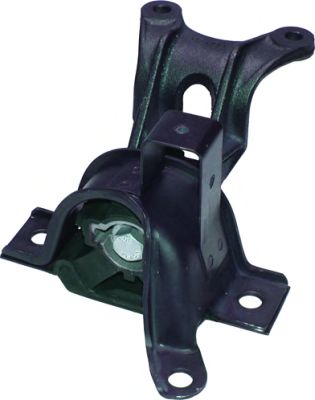

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50849	BIRTH	Engine Mounting	Weight [g] 1850
	50852	BIRTH	Engine Mounting	Weight [g] 730

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7479	BIRTH	Rubber Buffer, silencer	Weight [g] 200
	7482	BIRTH	Rubber Buffer, silencer	Weight [g] 100

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7315	BIRTH	Bellow, driveshaft	Height [mm] 85 Weight [g] 45 Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 74 Material Thermoplast
	7516	BIRTH	Bellow, driveshaft	Height [mm] 82 Weight [g] 180 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 24,5 Diameter 2 [mm] 80
	7585	BIRTH	Bellow, driveshaft	Height [mm] 85 Weight [g] 75 Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 74
	7748	BIRTH	Bellow, driveshaft	Height [mm] 105 Weight [g] 165 Fitting Position Front Axle Diameter 1 [mm] 25,5 Diameter 2 [mm] 80 Material Elastomer

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3383	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 21

Oil Drain Plug, oil pan

Images	Code parts	Brand of parts	Name of parts	Information
	4754	BIRTH	Oil Drain Plug, oil pan	Height [mm] 32 Weight [g] 60 Outer Thread 1 [mm] M 18x1,5

Tension Spring, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	6411	BIRTH	Tension Spring, gear lever	Weight [g] 45

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7380	BIRTH	Bellow, steering	Height [mm] 173 Weight [g] 65 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 14 Diameter 2 [mm] 55 Material Thermoplast

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0029	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 334 Length [mm] 347 Weight [g] 670 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle to Chassis No. 5120133
	AX0030	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 296 Length [mm] 309 Weight [g] 630 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle from Chassis No. 51200134
	AX0082	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 297 Length [mm] 311 Weight [g] 500 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0008	BIRTH	Tie Rod End	Length 2 [mm] 145 Weight [g] 800 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12 from Chassis No. 51200134
	RD1326	BIRTH	Tie Rod End	Length 2 [mm] 108 Weight [g] 325 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12
	RS0008	BIRTH	Tie Rod End	Length 2 [mm] 145 Weight [g] 800 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12 from Chassis No. 51200134

Bush, leaf spring

Images	Code parts	Brand of parts	Name of parts	Information
	51342	BIRTH	Bush, leaf spring	Height [mm] 20 Width [mm] 30,6 Weight [g] 15 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 18,5
	51587	BIRTH	Bush, leaf spring	Height [mm] 77 Width [mm] 34,5 Weight [g] 260 Fitting Position Front Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 14
	51591	BIRTH	Bush, leaf spring	Height [mm] 88 Width [mm] 56 Weight [g] 600 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 16,3

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	4952	BIRTH	Bush, shock absorber	Height [mm] 42,5 Width [mm] 34 Weight [g] 96 Fitting Position Upper Fitting Position Rear Axle Inner Diameter [mm] 14
	4953	BIRTH	Bush, shock absorber	Height [mm] 32 Width [mm] 42 Weight [g] 100 Fitting Position Lower Fitting Position Rear Axle Inner Diameter [mm] 14

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	51419	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 205 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 80 Diameter 2 [mm] 66

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50819	BIRTH	Rubber Buffer, suspension	Height [mm] 172 Width [mm] 108 Weight [g] 715 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 33
	50873	BIRTH	Rubber Buffer, suspension	Height [mm] 107,5 Width [mm] 72 Weight [g] 250 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 24 Diameter 2 [mm] 24
	51560	BIRTH	Rubber Buffer, suspension	Height [mm] 178 Weight [g] 205 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 62 Diameter 2 [mm] 62
	52229	BIRTH	Rubber Buffer, suspension	Height [mm] 178 Width [mm] 108,5 Weight [g] 635 Outer Thread 2 [mm] M 10X1,25 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 25

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0027	BIRTH	Ball Joint	Weight [g] 440 Outer Thread 2 [mm] M 12x1,25 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 13,8 from Chassis No. 5023343

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2205	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 30 Weight [g] 145 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2417	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 51 Length 2 [mm] 76 Weight [g] 490 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 19,9
	2418	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 51 Length 2 [mm] 76 Weight [g] 490 Inner Thread 2 [mm] M 8X1,25 Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 19,9
	2518	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 48 Weight [g] 420 Fitting Position Left Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 20
	2519	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 48 Weight [g] 300 Fitting Position Right Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 20

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4500	BIRTH	Nut, stub axle	Height [mm] 29,5 Width [mm] 32 Weight [g] 60 Inner Thread 1 [mm] M 22x1,5 Fitting Position Front Flange Ø [mm] 36

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX0015	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 118 Weight [g] 213 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4688	BIRTH	Stabiliser Mounting	Height [mm] 43 Width [mm] 51 Length [mm] 40 Weight [g] 60 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 21
	4689	BIRTH	Stabiliser Mounting	Height [mm] 43 Width [mm] 51 Length [mm] 40 Weight [g] 61 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 22
	4805	BIRTH	Stabiliser Mounting	Height [mm] 43 Width [mm] 51 Length [mm] 40 Weight [g] 70 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 23,5
	4860	BIRTH	Stabiliser Mounting	Width [mm] 30 Length [mm] 80 Weight [g] 145 Outer Thread 2 [mm] M 8X1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 10

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5874	BIRTH	Top Strut Mounting	Height [mm] 71 Width [mm] 136 Length [mm] 144,5 Weight [g] 1065 Inner Thread 2 [mm] M 8X1,25 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 14
	5875	BIRTH	Top Strut Mounting	Height [mm] 71 Width [mm] 136 Length [mm] 144,5 Weight [g] 1065 Outer Thread 2 [mm] M 8X1,25 Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 14

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1605	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3900 Outer Thread 2 [mm] M 12X1,25 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 13,8 Material Sheet Steel
	BR1606	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3900 Outer Thread 2 [mm] M 12X1,25 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 13,8 Material Sheet Steel
	BR1751	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3650 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 13,6 Material Sheet Steel
	BR1752	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3670 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 13,5 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3300	BIRTH	Wheel Hub	Height [mm] 77 Weight [g] 1500 Fitting Position Front Axle for wheel bearing diameter [mm] 37 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
