Cover, timing belt

Images	Code parts	Brand of parts	Name of parts	Information
	8428	BIRTH	Cover, timing belt	Weight [g] 140 Colour Black
	8848	BIRTH	Cover, timing belt	Weight [g] 150

Cap, carburettor

Images	Code parts	Brand of parts	Name of parts	Information
	4763	BIRTH	Cap, carburettor	Weight [g] 27 Inner Diameter [mm] 50
	4844	BIRTH	Cap, carburettor	Weight [g] 55 Inner Diameter [mm] 51

Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4081	BIRTH	Clutch Pedal Pad	Weight [g] 22 Fitting Position Front Axle

Release Fork, clutch

Images	Code parts	Brand of parts	Name of parts	Information
	4990	BIRTH	Release Fork, clutch	Height [mm] 58,6 Width [mm] 28 Weight [g] 80 Inner Diameter [mm] 25

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8568	BIRTH	Cap, radiator	Weight [g] 45 Pressure [bar] 1,4

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8700	BIRTH	Coolant Flange	Weight [g] 140 Fitting Position Front Axle

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	52283	BIRTH	Coolant Tube	Weight [g] 330

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8689	BIRTH	Water Tank, radiator	Weight [g] 500

Cap, oil filler

Images	Code parts	Brand of parts	Name of parts	Information
	8177	BIRTH	Cap, oil filler	Weight [g] 52 Material Elastomer

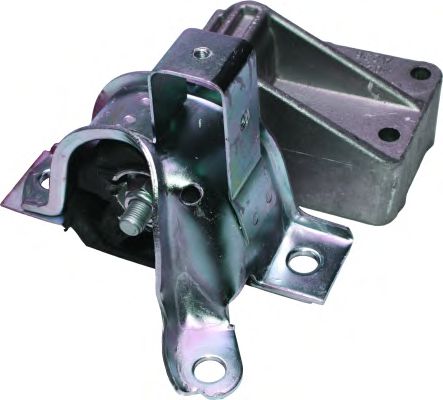

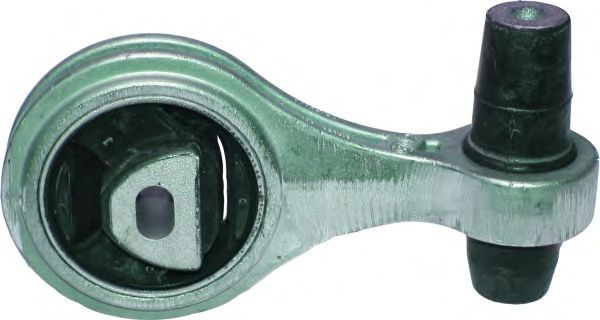

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50852	BIRTH	Engine Mounting	Weight [g] 730
	51525	BIRTH	Engine Mounting	Weight [g] 2060 Fitting Position Front
	51709	BIRTH	Engine Mounting	Weight [g] 1350 Fitting Position Rear

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7479	BIRTH	Rubber Buffer, silencer	Weight [g] 200
	7482	BIRTH	Rubber Buffer, silencer	Weight [g] 100

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7315	BIRTH	Bellow, driveshaft	Height [mm] 85 Weight [g] 45 Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 74 Material Thermoplast
	7516	BIRTH	Bellow, driveshaft	Height [mm] 82 Weight [g] 180 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 24,5 Diameter 2 [mm] 80
	7585	BIRTH	Bellow, driveshaft	Height [mm] 85 Weight [g] 75 Fitting Position Front Axle Diameter 1 [mm] 22 Diameter 2 [mm] 74
	7748	BIRTH	Bellow, driveshaft	Height [mm] 105 Weight [g] 165 Fitting Position Front Axle Diameter 1 [mm] 25,5 Diameter 2 [mm] 80 Material Elastomer

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3383	BIRTH	Tripod Hub, Drive shaft	Weight [g] 300 Fitting Position Front Axle Number of Teeth 21

Tension Spring, gear lever

Images	Code parts	Brand of parts	Name of parts	Information
	6411	BIRTH	Tension Spring, gear lever	Weight [g] 45

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7380	BIRTH	Bellow, steering	Height [mm] 173 Weight [g] 65 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 14 Diameter 2 [mm] 55 Material Thermoplast

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0029	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 334 Length [mm] 347 Weight [g] 670 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle to Chassis No. 5120133
	AX0030	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 296 Length [mm] 309 Weight [g] 630 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle from Chassis No. 51200134
	AX0082	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 297 Length [mm] 311 Weight [g] 500 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD0008	BIRTH	Tie Rod End	Length 2 [mm] 145 Weight [g] 800 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12 from Chassis No. 51200134
	RD1326	BIRTH	Tie Rod End	Length 2 [mm] 108 Weight [g] 325 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12
	RS0008	BIRTH	Tie Rod End	Length 2 [mm] 145 Weight [g] 800 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12 from Chassis No. 51200134

Bush, leaf spring

Images	Code parts	Brand of parts	Name of parts	Information
	51342	BIRTH	Bush, leaf spring	Height [mm] 20 Width [mm] 30,6 Weight [g] 15 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 18,5
	51587	BIRTH	Bush, leaf spring	Height [mm] 77 Width [mm] 34,5 Weight [g] 260 Fitting Position Front Fitting Position Rear Fitting Position Rear Axle Inner Diameter [mm] 14
	51591	BIRTH	Bush, leaf spring	Height [mm] 88 Width [mm] 56 Weight [g] 600 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Inner Diameter [mm] 16,3

Bush, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	4952	BIRTH	Bush, shock absorber	Height [mm] 42,5 Width [mm] 34 Weight [g] 96 Fitting Position Upper Fitting Position Rear Axle Inner Diameter [mm] 14
	4953	BIRTH	Bush, shock absorber	Height [mm] 32 Width [mm] 42 Weight [g] 100 Fitting Position Lower Fitting Position Rear Axle Inner Diameter [mm] 14

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	51419	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 205 Weight [g] 170 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 80 Diameter 2 [mm] 66

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50819	BIRTH	Rubber Buffer, suspension	Height [mm] 172 Width [mm] 108 Weight [g] 715 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 33
	50873	BIRTH	Rubber Buffer, suspension	Height [mm] 107,5 Width [mm] 72 Weight [g] 250 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 24 Diameter 2 [mm] 24
	51560	BIRTH	Rubber Buffer, suspension	Height [mm] 178 Weight [g] 205 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 62 Diameter 2 [mm] 62
	52229	BIRTH	Rubber Buffer, suspension	Height [mm] 178 Width [mm] 108,5 Weight [g] 635 Outer Thread 2 [mm] M 10X1,25 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 25

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX0027	BIRTH	Ball Joint	Weight [g] 440 Outer Thread 2 [mm] M 12x1,25 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 13,8 from Chassis No. 5023343
	CX0110	BIRTH	Ball Joint	Weight [g] 380 Outer Thread 2 [mm] M 12X1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 13,8 to Chassis No. 5023342

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2205	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 30 Weight [g] 145 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12
	2417	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 51 Length 2 [mm] 76 Weight [g] 490 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 19,9
	2418	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 51 Length 2 [mm] 76 Weight [g] 490 Inner Thread 2 [mm] M 8X1,25 Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 19,9
	2518	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 48 Weight [g] 420 Fitting Position Left Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 20
	2519	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 48 Weight [g] 300 Fitting Position Right Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 20

Nut, stub axle

Images	Code parts	Brand of parts	Name of parts	Information
	4500	BIRTH	Nut, stub axle	Height [mm] 29,5 Width [mm] 32 Weight [g] 60 Inner Thread 1 [mm] M 22x1,5 Fitting Position Front Flange Ø [mm] 36

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX0015	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 118 Weight [g] 213 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Rear Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4688	BIRTH	Stabiliser Mounting	Height [mm] 43 Width [mm] 51 Length [mm] 40 Weight [g] 60 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 21
	4689	BIRTH	Stabiliser Mounting	Height [mm] 43 Width [mm] 51 Length [mm] 40 Weight [g] 61 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 22
	4805	BIRTH	Stabiliser Mounting	Height [mm] 43 Width [mm] 51 Length [mm] 40 Weight [g] 70 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 23,5
	4860	BIRTH	Stabiliser Mounting	Width [mm] 30 Length [mm] 80 Weight [g] 145 Outer Thread 2 [mm] M 8X1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 10

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5874	BIRTH	Top Strut Mounting	Height [mm] 71 Width [mm] 136 Length [mm] 144,5 Weight [g] 1065 Inner Thread 2 [mm] M 8X1,25 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 14
	5875	BIRTH	Top Strut Mounting	Height [mm] 71 Width [mm] 136 Length [mm] 144,5 Weight [g] 1065 Outer Thread 2 [mm] M 8X1,25 Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 14

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1605	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3900 Outer Thread 2 [mm] M 12X1,25 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 13,8 Material Sheet Steel
	BR1606	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3900 Outer Thread 2 [mm] M 12X1,25 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 13,8 Material Sheet Steel
	BR1751	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3650 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 13,6 Material Sheet Steel
	BR1752	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3670 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 13,5 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3300	BIRTH	Wheel Hub	Height [mm] 77 Weight [g] 1500 Fitting Position Front Axle for wheel bearing diameter [mm] 37 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 22 Number of Holes 4
