Bearing, drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	6145	BIRTH	Bearing, drive shaft	Height [mm] 28 Width [mm] 47,5 Weight [g] 100 Inner Diameter [mm] 22,8

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8298	BIRTH	Cap, radiator	Weight [g] 30 Pressure [bar] 1,4 Colour Brown

Coolant Flange

Images	Code parts	Brand of parts	Name of parts	Information
	8470	BIRTH	Coolant Flange	Weight [g] 380 Fitting Position Front Axle Colour Black

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8790	BIRTH	Water Tank, radiator	Weight [g] 515

Cap, oil filler

Images	Code parts	Brand of parts	Name of parts	Information
	8539	BIRTH	Cap, oil filler	Weight [g] 20

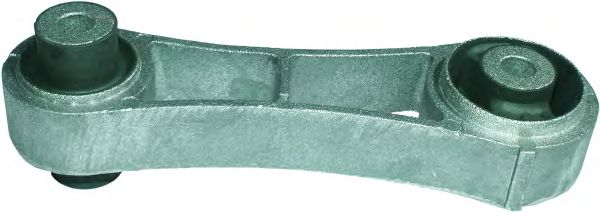

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	50705	BIRTH	Engine Mounting	Length 2 [mm] 150,2 Length [mm] 207,5 Weight [g] 425 Fitting Position Rear Inner Diameter [mm] 12,5
	5946	BIRTH	Engine Mounting	Weight [g] 1120 Fitting Position Right Fitting Position Front
	5947	BIRTH	Engine Mounting	Weight [g] 237 Fitting Position Rear Fitting Position Front Axle

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7302	BIRTH	Rubber Buffer, silencer	Weight [g] 45

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7124	BIRTH	Bellow, driveshaft	Height [mm] 80 Weight [g] 290 Fitting Position Front Axle Diameter 1 [mm] 30 Diameter 2 [mm] 85
	7276	BIRTH	Bellow, driveshaft	Height [mm] 130 Weight [g] 71 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 85 Material Thermoplast
	7276/A	BIRTH	Bellow, driveshaft	Height [mm] 130 Weight [g] 101 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 85 Material Elastomer
	7327	BIRTH	Bellow, driveshaft	Height [mm] 145 Weight [g] 86 Fitting Position Front Axle Diameter 1 [mm] 23 Diameter 2 [mm] 83 Material Thermoplast
	7332	BIRTH	Bellow, driveshaft	Height [mm] 88 Weight [g] 180 Fitting Position Front Axle Diameter 1 [mm] 28 Diameter 2 [mm] 74

Oil Cooler, engine oil

Images	Code parts	Brand of parts	Name of parts	Information
	8926	BIRTH	Oil Cooler, engine oil	Height [mm] 130 Width [mm] 33 Length [mm] 96 Weight [g] 550 Inner Diameter [mm] 23,5

Oil Dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8683	BIRTH	Oil Dipstick	Weight [g] 75 Fitting Position Front Axle

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7279	BIRTH	Bellow, steering	Height [mm] 155 Weight [g] 100 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 10 Diameter 2 [mm] 37

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD3015	BIRTH	Tie Rod End	Length 2 [mm] 176 Length [mm] 196 Weight [g] 600 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 12
	RS3015	BIRTH	Tie Rod End	Length 2 [mm] 176 Length [mm] 196 Weight [g] 600 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6260	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 20 Width [mm] 100 Weight [g] 150 Fitting Position Front Axle Inner Diameter [mm] 65

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CX3016	BIRTH	Ball Joint	Weight [g] 310 Outer Thread 2 [mm] M 12x1,25 Fitting Position Right Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 14,3

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2196	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 55 Weight [g] 300 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 18,3
	2197	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 55 Width [mm] 58 Weight [g] 300 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 12

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	2448	BIRTH	Mounting, axle beam	Height [mm] 73 Width [mm] 72 Weight [g] 474 Fitting Position Rear Axle Inner Diameter [mm] 32,1
	51696	BIRTH	Mounting, axle beam	Height [mm] 61 Width [mm] 40 Weight [g] 230 Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 12
	51699	BIRTH	Mounting, axle beam	Height [mm] 83,5 Width [mm] 40 Weight [g] 280 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 13,5

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4877	BIRTH	Stabiliser Mounting	Weight [g] 40 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 19,5

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5692	BIRTH	Top Strut Mounting	Height [mm] 59,5 Width [mm] 184 Weight [g] 1600 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 14,5
	5693	BIRTH	Top Strut Mounting	Weight [g] 1600 Fitting Position Left Fitting Position Front Axle

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1344	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 4800 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 14,5 Material Steel
	BR1345	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 4800 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 14,5 Material Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3326	BIRTH	Wheel Hub	Height [mm] 73 Weight [g] 1800 Fitting Position Front Axle for wheel bearing diameter [mm] 40 Flange Ø [mm] 130 Drum Diameter 61 Wheel Hub Diameter [mm] 60 Number of Teeth 23 Number of Holes 4
