Clutch Pedal Pad

Images	Code parts	Brand of parts	Name of parts	Information
	4081	BIRTH	Clutch Pedal Pad	Weight [g] 22 Fitting Position Front Axle

Cap, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8568	BIRTH	Cap, radiator	Weight [g] 45 Pressure [bar] 1,4

Coolant Tube

Images	Code parts	Brand of parts	Name of parts	Information
	50444	BIRTH	Coolant Tube	Weight [g] 450

Water Tank, radiator

Images	Code parts	Brand of parts	Name of parts	Information
	8404	BIRTH	Water Tank, radiator	Weight [g] 290

Bracket, engine mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5738	BIRTH	Bracket, engine mounting	Weight [g] 1620

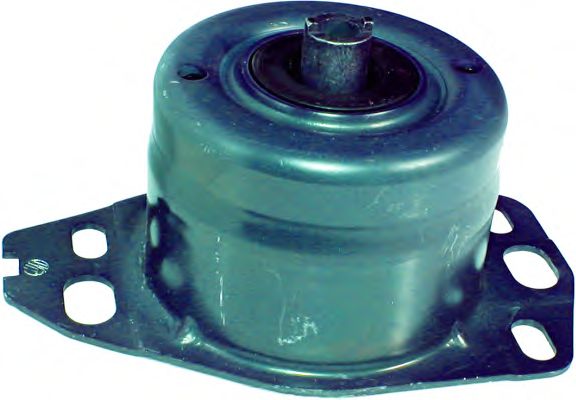

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	51674	BIRTH	Engine Mounting	Weight [g] 950
	5878	BIRTH	Engine Mounting	Weight [g] 1010

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7432	BIRTH	Rubber Buffer, silencer

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7324	BIRTH	Bellow, driveshaft	Height [mm] 107 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 27 Diameter 2 [mm] 86 Material Thermoplast
	7516	BIRTH	Bellow, driveshaft	Height [mm] 82 Weight [g] 180 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 24,5 Diameter 2 [mm] 80
	7748	BIRTH	Bellow, driveshaft	Height [mm] 105 Weight [g] 165 Fitting Position Front Axle Diameter 1 [mm] 25,5 Diameter 2 [mm] 80 Material Elastomer

Tripod Hub, Drive shaft

Images	Code parts	Brand of parts	Name of parts	Information
	3295	BIRTH	Tripod Hub, Drive shaft	Weight [g] 290 Fitting Position Front Axle Number of Teeth 22

Funnel, oil dipstick

Images	Code parts	Brand of parts	Name of parts	Information
	8942	BIRTH	Funnel, oil dipstick	Weight [g] 150

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7379	BIRTH	Bellow, steering	Height [mm] 210 Weight [g] 130 Fitting Position Front Axle Diameter 1 [mm] 13 Diameter 2 [mm] 55 Material Thermoplast

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0918	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 298 Length [mm] 317 Weight [g] 540 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 14X1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD1326	BIRTH	Tie Rod End	Length 2 [mm] 108 Weight [g] 325 Inner Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle Cone Size [mm] 12

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	5884	BIRTH	Rubber Buffer, suspension	Height [mm] 183 Weight [g] 250 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Diameter 1 [mm] 22,5 Diameter 2 [mm] 63 to model year 2002
	5885	BIRTH	Rubber Buffer, suspension	Height [mm] 84 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 20

Anti-Friction Bearing, suspension strut support mounting

Images	Code parts	Brand of parts	Name of parts	Information
	6321	BIRTH	Anti-Friction Bearing, suspension strut support mounting	Height [mm] 45 Width [mm] 128 Weight [g] 300 Fitting Position Front Axle Inner Diameter [mm] 81

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2068	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 41 Weight [g] 360 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 19,9
	2211	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 60,5 Width [mm] 51 Length 2 [mm] 92 Weight [g] 370 Inner Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Front Axle Inner Diameter [mm] 20,45
	2212	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 60,5 Width [mm] 51 Length 2 [mm] 92 Weight [g] 349 Outer Thread 2 [mm] M 10X1,25 Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 20,45
	2213	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 41,1 Weight [g] 380 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 20,9
	2214	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 41,1 Weight [g] 382 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 20,9
	2245	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 54 Width [mm] 58 Weight [g] 380 Fitting Position Right Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 20,9
	2246	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 54 Width [mm] 58 Weight [g] 380 Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 20,9
	2658	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 41 Weight [g] 400 Fitting Position Right Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 18,7
	2659	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 50 Width [mm] 41 Weight [g] 400 Fitting Position Left Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 18,7

Repair Kit, stabilizer coupling rod

Images	Code parts	Brand of parts	Name of parts	Information
	4106	BIRTH	Repair Kit, stabilizer coupling rod	Width [mm] 19 Length 2 [mm] 952 Fitting Position inner Fitting Position Front Axle

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	BX1327	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 275 Weight [g] 345 Outer Thread 2 [mm] M 10x1,25 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4539	BIRTH	Stabiliser Mounting	Weight [g] 95 Fitting Position Right Fitting Position Left Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 19

Suspension Kit

Images	Code parts	Brand of parts	Name of parts	Information
	50160	BIRTH	Suspension Kit	Weight [g] 890 Fitting Position Right Fitting Position Left Fitting Position Rear Axle
	50934	BIRTH	Suspension Kit	Weight [g] 890 Fitting Position Right Fitting Position Left Fitting Position Rear Axle

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5882	BIRTH	Top Strut Mounting	Height [mm] 58,5 Length [mm] 210 Weight [g] 1065 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 12,2 to model year 2002

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1281	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 7000 Fitting Position Right Fitting Position Rear Axle Material Cast Iron
	BR1282	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 7000 Fitting Position Left Fitting Position Rear Axle Material Cast Iron
	BR1421	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3750 Fitting Position Right Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Steel
	BR1422	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3750 Fitting Position Left Fitting Position Front Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 17 Material Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3146	BIRTH	Wheel Hub	Height [mm] 71,5 Weight [g] 1300 Fitting Position Right Fitting Position Left Fitting Position Front Axle for wheel bearing diameter [mm] 37 Flange Ø [mm] 116 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Teeth 25 Number of Holes 4
	3157	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1300 Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
	3400	BIRTH	Wheel Hub	Height [mm] 62 Weight [g] 1490 Fitting Position Right Fitting Position Left Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Flange Ø [mm] 117,5 Drum Diameter 59 Wheel Hub Diameter [mm] 58 Number of Holes 4
