Sensor, wheel speed

Images	Code parts	Brand of parts	Name of parts	Information
	50891	BIRTH	Sensor, wheel speed	Length [mm] 70 Weight [g] 40 Fitting Position Left
	50892	BIRTH	Sensor, wheel speed	Length 2 [mm] 39,3 Weight [g] 45 Fitting Position Right
	50901	BIRTH	Sensor, wheel speed	Length 2 [mm] 37,4 Weight [g] 40 Fitting Position Rear

Engine Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4667	BIRTH	Engine Mounting	Weight [g] 55 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Front Axle

Rubber Buffer, silencer

Images	Code parts	Brand of parts	Name of parts	Information
	7485	BIRTH	Rubber Buffer, silencer	Height [mm] 87 Weight [g] 330 Diameter 1 [mm] 22 Diameter 2 [mm] 78

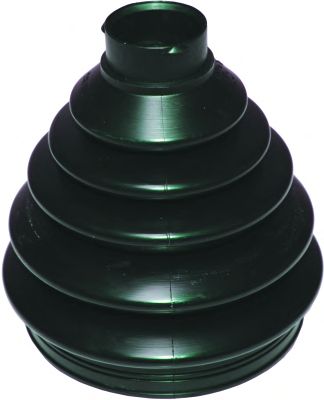

Bellow, driveshaft

Images	Code parts	Brand of parts	Name of parts	Information
	7031	BIRTH	Bellow, driveshaft	Height [mm] 115 Weight [g] 95 Fitting Position Front Axle Diameter 1 [mm] 29 Diameter 2 [mm] 98 Material Thermoplast
	7046	BIRTH	Bellow, driveshaft	Height [mm] 115 Weight [g] 70 Fitting Position Front Axle Diameter 1 [mm] 29 Diameter 2 [mm] 96 Material Thermoplast
	7319	BIRTH	Bellow, driveshaft	Height [mm] 125 Weight [g] 90 Fitting Position Front Axle Diameter 1 [mm] 25 Diameter 2 [mm] 86 Material Thermoplast
	7665	BIRTH	Bellow, driveshaft	Height [mm] 112 Weight [g] 80 Fitting Position Front Axle Diameter 1 [mm] 29 Diameter 2 [mm] 95 Material Thermoplast

Bellow, steering

Images	Code parts	Brand of parts	Name of parts	Information
	7366	BIRTH	Bellow, steering	Height [mm] 179 Weight [g] 45 Fitting Position Front Axle Diameter 1 [mm] 16 Diameter 2 [mm] 48 Material Thermoplast

Tie Rod Axle Joint

Images	Code parts	Brand of parts	Name of parts	Information
	AX0079	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 318 Length [mm] 340 Weight [g] 597 Outer Thread 1 [mm] M 14x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle
	AX1381	BIRTH	Tie Rod Axle Joint	Length 2 [mm] 333 Length [mm] 352 Weight [g] 800 Outer Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 16x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle

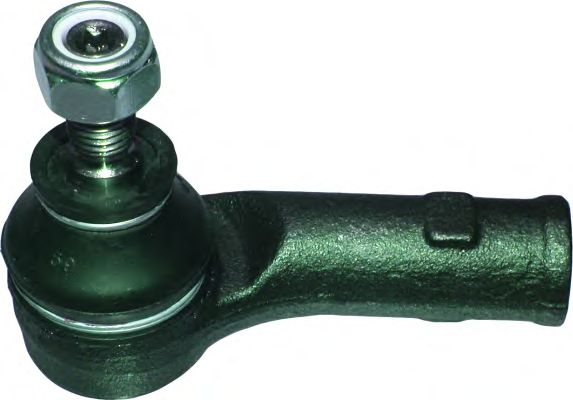

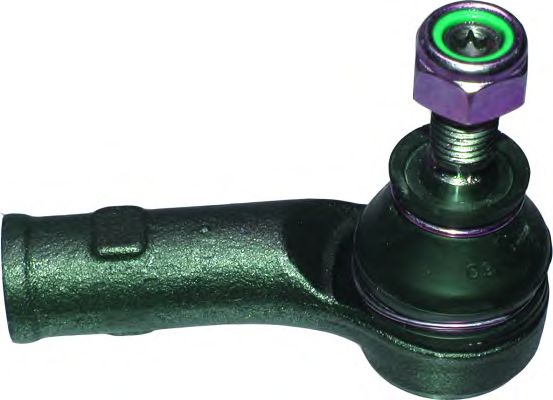

Tie Rod End

Images	Code parts	Brand of parts	Name of parts	Information
	RD1382	BIRTH	Tie Rod End	Length 2 [mm] 85 Weight [g] 400 Inner Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 12x1,5 Fitting Position Right Fitting Position Front Axle Cone Size [mm] 13,2
	RS1382	BIRTH	Tie Rod End	Length 2 [mm] 85 Weight [g] 400 Inner Thread 1 [mm] M 16x1,5 Outer Thread 2 [mm] M 12x1,5 Fitting Position Left Fitting Position Front Axle Cone Size [mm] 13,2

Protective Cap/Bellow, shock absorber

Images	Code parts	Brand of parts	Name of parts	Information
	50293	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 225 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 18 Diameter 2 [mm] 71
	50295	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 180 Weight [g] 45 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 38 Diameter 2 [mm] 53
	50331	BIRTH	Protective Cap/Bellow, shock absorber	Height [mm] 160 Weight [g] 40 Fitting Position Right Fitting Position Left Fitting Position Rear Axle

Rubber Buffer, suspension

Images	Code parts	Brand of parts	Name of parts	Information
	50258	BIRTH	Rubber Buffer, suspension	Height [mm] 64 Weight [g] 60 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 18 Diameter 2 [mm] 22 Material PU (Polyurethane)
	50871	BIRTH	Rubber Buffer, suspension	Height [mm] 143,5 Weight [g] 100 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 15,5 Diameter 2 [mm] 15,5
	50890	BIRTH	Rubber Buffer, suspension	Height [mm] 116 Weight [g] 80 Fitting Position Right Fitting Position Left Fitting Position Rear Axle Diameter 1 [mm] 15 Diameter 2 [mm] 15 Suspension for vehicles with sports suspension
	51084	BIRTH	Rubber Buffer, suspension	Height [mm] 38 Weight [g] 105 Fitting Position Right Fitting Position Left Fitting Position Rear Axle

Spring Cap

Images	Code parts	Brand of parts	Name of parts	Information
	51395	BIRTH	Spring Cap	Height [mm] 20 Width [mm] 92 Weight [g] 130 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 22

Ball Joint

Images	Code parts	Brand of parts	Name of parts	Information
	CD3039	BIRTH	Ball Joint	Weight [g] 400 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15
	CS3039	BIRTH	Ball Joint	Weight [g] 400 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15

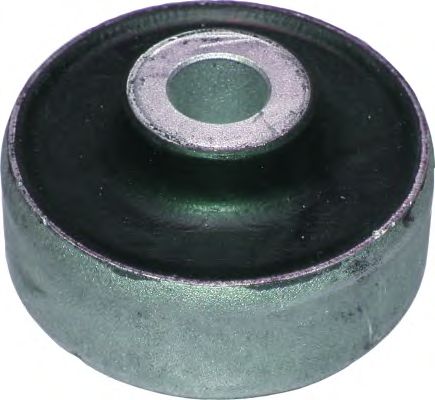

Control Arm-/Trailing Arm Bush

Images	Code parts	Brand of parts	Name of parts	Information
	2017	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 54 Width [mm] 32,5 Weight [g] 90 Fitting Position Right Fitting Position Left Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 12
	2185	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 41 Width [mm] 60 Weight [g] 115 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 13 to Chassis No. 8LY117501
	2627	BIRTH	Control Arm-/Trailing Arm Bush	Height [mm] 41 Width [mm] 60 Weight [g] 125 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Lower Fitting Position Front Axle Inner Diameter [mm] 13,5 from Chassis No. 8LY117501

Mounting, axle beam

Images	Code parts	Brand of parts	Name of parts	Information
	2186	BIRTH	Mounting, axle beam	Height [mm] 90 Width [mm] 72 Weight [g] 320 Fitting Position Rear Axle Inner Diameter [mm] 12
	50225	BIRTH	Mounting, axle beam	Height [mm] 31 Width [mm] 50 Weight [g] 125 Fitting Position Right Fitting Position Left Fitting Position Rear Fitting Position Front Axle Inner Diameter [mm] 18
	51085	BIRTH	Mounting, axle beam	Height [mm] 90 Width [mm] 69,5 Weight [g] 780 Fitting Position Rear Axle Inner Diameter [mm] 12,2

Rod/Strut, stabiliser

Images	Code parts	Brand of parts	Name of parts	Information
	5663	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 105,5 Length [mm] 146 Weight [g] 230 Outer Thread 2 [mm] M 10x1,5 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 10,5
	BD1386	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 336 Weight [g] 400 Outer Thread 2 [mm] M 12x1,5 Fitting Position Right Fitting Position Front Axle
	BS1386	BIRTH	Rod/Strut, stabiliser	Rod/Strut Coupling Rod Length 2 [mm] 336 Weight [g] 400 Outer Thread 2 [mm] M 12x1,5 Fitting Position Left Fitting Position Front Axle

Securing Plate, ball joint

Images	Code parts	Brand of parts	Name of parts	Information
	4510	BIRTH	Securing Plate, ball joint	Weight [g] 60 Fitting Position Right Fitting Position Left Fitting Position Front Axle

Stabiliser Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	4511	BIRTH	Stabiliser Mounting	Height [mm] 37 Width [mm] 24,6 Length [mm] 39,4 Weight [g] 25 Fitting Position inner Fitting Position Front Axle Inner Diameter [mm] 19
	4586	BIRTH	Stabiliser Mounting	Height [mm] 37 Width [mm] 24,8 Weight [g] 20 Fitting Position Front Fitting Position Front Axle Inner Diameter [mm] 23
	4653	BIRTH	Stabiliser Mounting	Weight [g] 230 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 14
	4654	BIRTH	Stabiliser Mounting	Width [mm] 29 Weight [g] 40 Fitting Position Right Fitting Position Left Fitting Position Front Axle Inner Diameter [mm] 10
	4701	BIRTH	Stabiliser Mounting	Height [mm] 40 Width [mm] 30 Length [mm] 47,5 Weight [g] 80 Fitting Position Rear Axle Inner Diameter [mm] 18

Top Strut Mounting

Images	Code parts	Brand of parts	Name of parts	Information
	5673	BIRTH	Top Strut Mounting	Height [mm] 53 Width [mm] 82 Weight [g] 230 Fitting Position Right Fitting Position Left Fitting Position Front Axle Diameter 1 [mm] 83 Inner Diameter [mm] 26 Material Steel Elastomer

Track Control Arm

Images	Code parts	Brand of parts	Name of parts	Information
	BR1359	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3450 Outer Thread 2 [mm] M 12x1,5 Fitting Position Right Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15 Material Sheet Steel
	BR1359/A	BIRTH	Track Control Arm	Steering arm type Control Arm Weight [g] 3450 Outer Thread 2 [mm] M 12x1,5 Fitting Position Left Fitting Position Lower Fitting Position Front Axle Cone Size [mm] 15 Material Sheet Steel

Wheel Hub

Images	Code parts	Brand of parts	Name of parts	Information
	3319	BIRTH	Wheel Hub	Height [mm] 75 Weight [g] 1550 Fitting Position Front Axle for wheel bearing diameter [mm] 40 Flange Ø [mm] 126,5 Drum Diameter 65 Wheel Hub Diameter [mm] 57 Number of Teeth 36 Number of Holes 5
	3398	BIRTH	Wheel Hub	Height [mm] 85,5 Weight [g] 900 Fitting Position Rear Axle for wheel bearing diameter [mm] 30 Number of Holes 4
